      900SC202MHD

      900SC202MHD

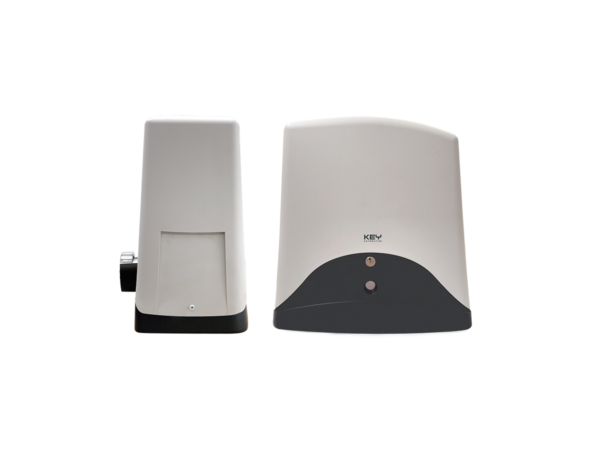

      Gearmotor for sliding gates up to 2000 Kg, 230 Vac, CT102 control unit, with magnetic limit switches and electric brake. M4 pinion
      Product code 900SC202MHD
      Speed 17 cm/s
      Control unit CT102B
      Nominal power 920 W
      Max leaf weight 2000 kg

      SKU: 900SC202MHD Categories: ,

      Description

      Gearmotor for sliding gates up to 2000 Kg, 230 Vac, CT102 control unit, with magnetic limit switches and electric brake. M4 pinion

      Reviews

      There are no reviews yet.

      Be the first to review “900SC202MHD”

      Accessories

      M4 zinc coated rack 30x12 mm L=1000 mm
      M4 zinc coated rack 30x8 mm L=1000 mm
      M4 nylon rack L=1000 mm up to 800 Kg
      Control unit for one sliding gate motor or overhead door, 230 Vac, with electronic clutch and slowdown functions
      Spare 230V heavy duty control unit for 1 motor
      4 channels plug-in receiver, fix or rolling code, 1000 codes, blue led, 433MHz
      4-channel transmitter, pink colour, XR rolling code 433 MHz, waterproof
      4-channel transmitter, red colour, XR rolling code 433 MHz, waterproof
      4-channel transmitter, blue colour, XR rolling code 433 MHz, waterproof
      4-channel transmitter, magenta colour, XR rolling code 433 MHz, waterproof
      4-channel transmitter, orange colour, XR rolling code 433 MHz, waterproof
      4-channel transmitter, black colour, XR rolling code 433 MHz, waterproof
      4-channel transmitter, green colour, XR rolling code 433 MHz, waterproof
      4-channel transmitter, white colour, XR rolling code 433 MHz, with on-board receiver, waterproof
      4-channel transmitter, white colour, XR rolling code 433 MHz, waterproof
      4-channel transmitter, yellow colour, XR rolling code 433 MHz, waterproof
      4-channel transmitter, black colour, XR rolling code 433 MHz, with on-board receiver, waterproof
      Kit with 2x 4-channel 433 MHz transmitters, rolling code, inverted colours charcoal grey/light grey
      Kit with 2x 4-channel 433 MHz transmitters with built-in receiver, rolling code, inverted colours charcoal grey/light grey
      1-channel touch transmitter, rolling code 433Mhz
      2-channel touch transmitter, rolling code 433Mhz
      Pair of photocells for external use for small pillars
      Pair of photocells for external use and flush mounting
      Pair of photocells for external use adjustable through 180°, for small pillars, battery powered
      Pair of photocells for external use and flush mounting
      The RP25K reflective photo-electric switch has been specially developed for gate automation installations and offers the optimum solution for safety application. Comes with reflector, mounting brackets for the RP 25, mounting brackets for the reflector, insulation for the reflector, including a cable gland M12 and fastening material for the mounting brackets.
      Led flashing with courtesy light, crepuscular sensor and built-in antenna
      24 Vdc flashing light, with antenna
      Key selector with all-metal body and key code 01
      Touch keyboard via radio (Rolling Code)
      Touch keyboard via PowerBUS
      Radio controlled digital key pad to be ordered together with all rolling code receivers with batteries included. Digital key pad with new design interface, back-lighting and 2, channels transmitter.
      Support post h. 100 cm
      Support post h. 50 cm
      Spare universal 121 lock (2 PCS)
      Spare TURBO 200 screws pack
      Spare TURBO 200 brackets pack
      Spare transmission shaft group TURBO 200 M3 RAL7016
      Spare STAR3024, TURBO200 unlock key
      Spare SC202MHD top cover assembly
      Spare 25UF 450V with 2P connector capacitor
      Spare TURBO200 unlock group
      Spare TURBO202MHD motor assembly
      Spare magnetic sensor for SUN/TURBO
      Spare 230V/24V 25VA transformer
      Spare TURBO200 motor worm
      Spare inner Z33 gear for TURBO200

      plus

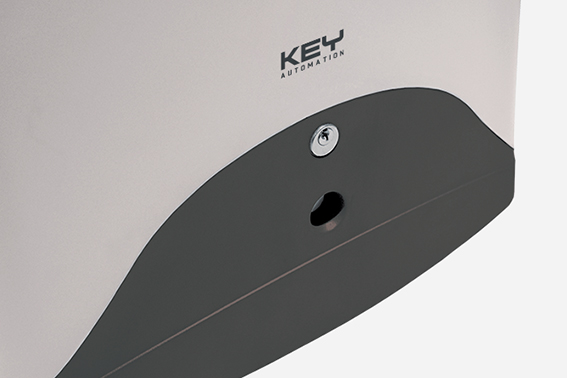

      Hidden external case fixing

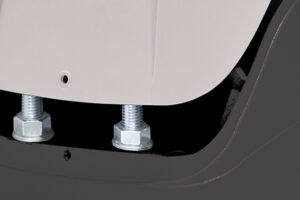

      Aluminum polished base and rised fixing plate

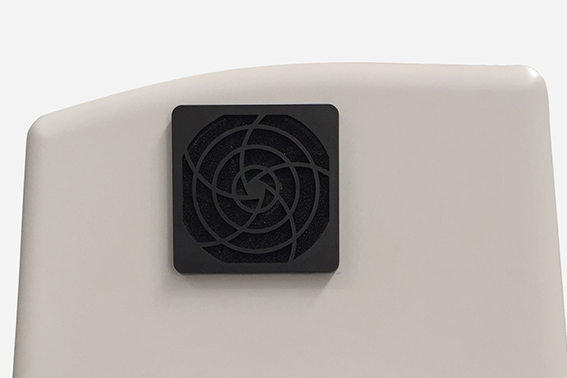

      Cooling fan (SC202MHD) for intensive use

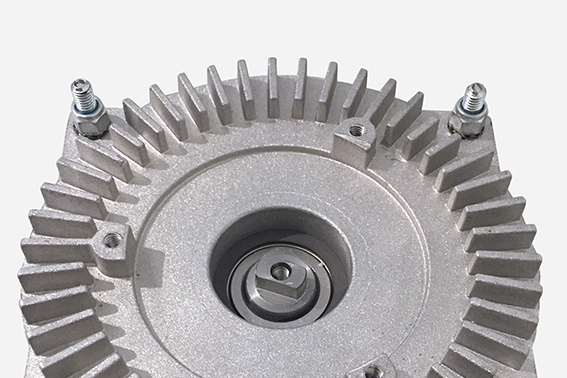

      Sturdy and performing motors

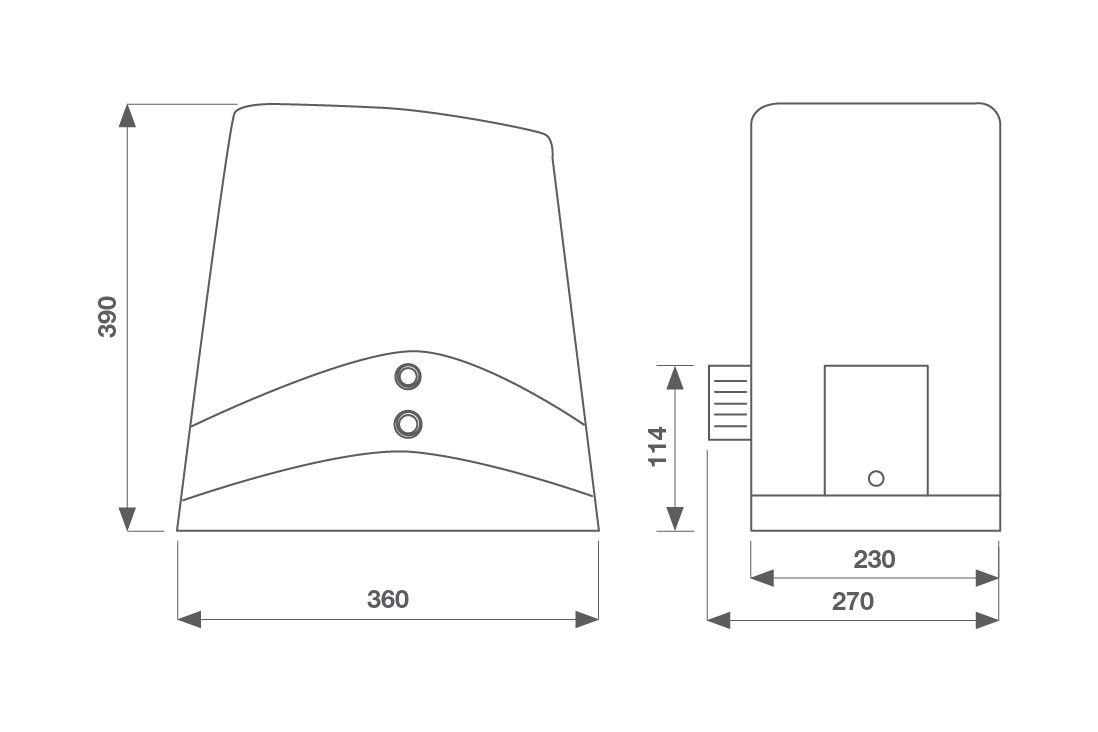

      Dimensions

      Technical Features

      Speed cm/s 17
      Torque Nm 93
      Duty cycle percentage % 50/70
      Control unit CT102I
      Voltage Vac 230
      AC Voltage frequency Hz 50/60
      Nominal current A 4
      Nominal power W 920
      Thermal protection °C 150
      Appliance isolation class I
      Degree of protection IP 44
      Dimensions (W – D – H) mm 360 – 270 – 390
      Packaging dimensions (L – D – H) mm 265 – 420 – 405
      Packaging volume m3 0,04508
      Item kg 24,8
      Min operating temperature °C -20
      Max operating temperature °C +55
      Max leaf weight kg 2000
