Description

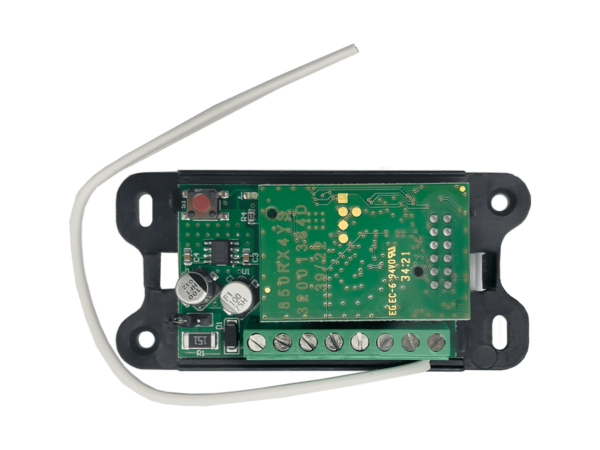

2-channel universal receiver, fix or rolling code, 1000 codes memory
Accessories
900RXM23K
2-channel universal receiver, fix or rolling code, 1000 codes memory
| Product code | RXM23K |
| Protection Rating | IP30 |
| Frequency | 433.92MHz |
| Feed with inserted jumper | 12 -14 VAC / 10 – 16 VDC |
| Feed without inserted jumper | 14-24 VAC / 16 – 35 VDC |
| Operating temperature | -20 +50 °C |
| Maximum consumption with both relays active | 70 mA |
| Maximum relay contact current | 1A |
| Dimensions (L-D-H) | 85 – 40 -25 mm |
Accessories
4-channel transmitter, pink colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, red colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, blue colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, magenta colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, orange colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, green colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, with on-board receiver, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, yellow colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, with on-board receiver, waterproof
Kit with 2x 4-channel 433 MHz transmitters, rolling code, inverted colours charcoal grey/light grey
Kit with 2x 4-channel 433 MHz transmitters with built-in receiver, rolling code, inverted colours charcoal grey/light grey
1-channel touch transmitter, rolling code 433Mhz
2-channel touch transmitter, rolling code 433Mhz
Touch keyboard via radio (Rolling Code)
Radio controlled digital key pad to be ordered together with all rolling code receivers with batteries included.
Digital key pad with new design interface, back-lighting and 2, channels transmitter.
plus
Programmable with keypads and remotes
Suitable for other brand garage motors
Programmable with KEY remotes
