900FT43

Accessories

900FT43

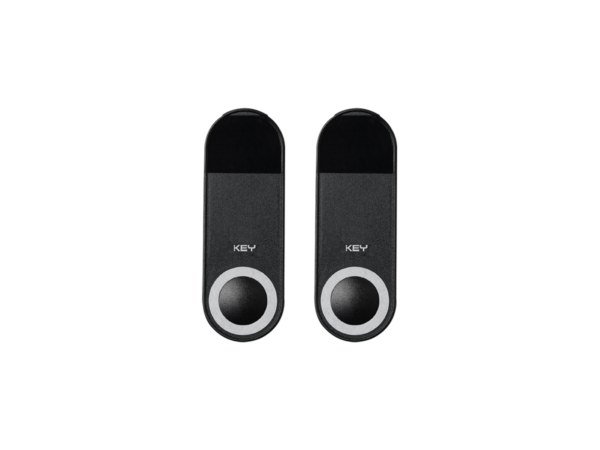

Pair of photocells for external use and flush mounting
Product code 900FT43
Snow Function Photocell activates an adaptively temporised mode, in case of frequent dimming or darkening to avoid false obstacle detection.
New logic circuit with improve performance Two programmable ranges

Description

Pair of photocells for external use and flush mounting

Reviews

There are no reviews yet.

Be the first to review “900FT43”

Accessories

Control unit for swing gates, 24 Vdc, with electronic clutch and slowdown functions. Built-in receiver.
Control unit for one sliding gate motor, overhead door or barrier, 24 Vdc, with electronic clutch and slowdown functions. Built-in receiver
Control unit for one sliding gate motor or overhead door, 230 Vac, with electronic clutch and slowdown functions
Control unit in box for two 24V motors with 250 VA transformer
Logic mainboard for SUN5024F
Control unit for one rolling shutter or sliding gate motor, 230 Vac, with electronic clutch, limit switch. Built-in receiver
Support post h. 50 cm with integrated LED light (5W LED)
Support post h. 100 cm with integrated LED light (10W LED)
Support post h. 100 cm
Support post h. 100 cm with accessory housing
Support post h. 100 cm with integrated LED light (10W LED) and accessory housing
Support post h. 50 cm

plus

KEY Photocell range
180 degree sensor adjustable
KEY Photocell post

Dimensions

Usage Limits

Technical Features

Duty cycle percentage % 100
Voltage Vac 10-30
Voltage Vdc 10-40
AC Voltage frequency Hz 50/60
Degree of protection IP 54

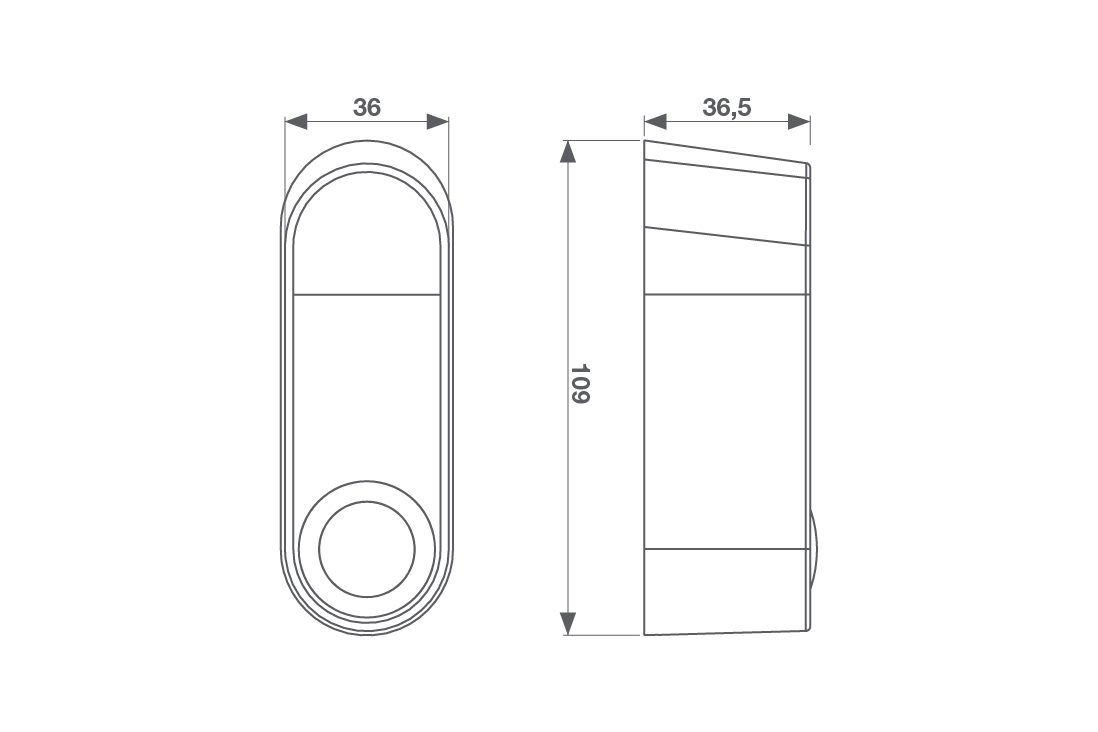

Dimensions (W – D – H) mm 38 – 38 – 109
Packaging dimensions (L – D – H) mm 222 – 90 – 60
Packaging volume m3 0,00120
Item kg 0,186
Min operating temperature °C -20
Max operating temperature °C +55
