Description

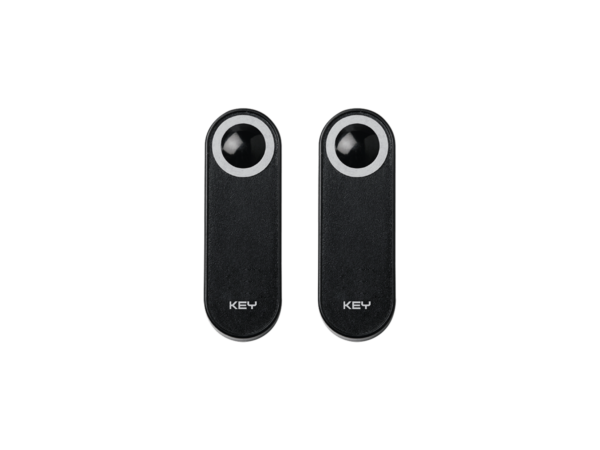

Pair of photocells for external use for small pillars
Accessories
900FT23
Pair of photocells for external use for small pillars
| Product code | 900FT23 |
| Snow Function | Photocell activates an adaptively temporised mode, in case of frequent dimming or darkening to avoid false obstacle detection. |
| New logic circuit with improve performance | Two programmable ranges |
Accessories
Control unit for swing gates, 24 Vdc, with electronic clutch and slowdown functions. Built-in receiver.
Control unit for one sliding gate motor, overhead door or barrier, 24 Vdc, with electronic clutch and slowdown functions. Built-in receiver
Control unit for one sliding gate motor or overhead door, 230 Vac, with electronic clutch and slowdown functions
Control unit in box for two 24V motors with 250 VA transformer
Logic mainboard for SUN5024F
Control unit for one rolling shutter or sliding gate motor, 230 Vac, with electronic clutch, limit switch. Built-in receiver
Support post h. 50 cm with integrated LED light (5W LED)
Support post h. 100 cm with integrated LED light (10W LED)
Support post h. 100 cm
Support post h. 100 cm with accessory housing
Support post h. 100 cm with integrated LED light (10W LED) and accessory housing
Support post h. 50 cm
plus
180 degree sensor adjustable

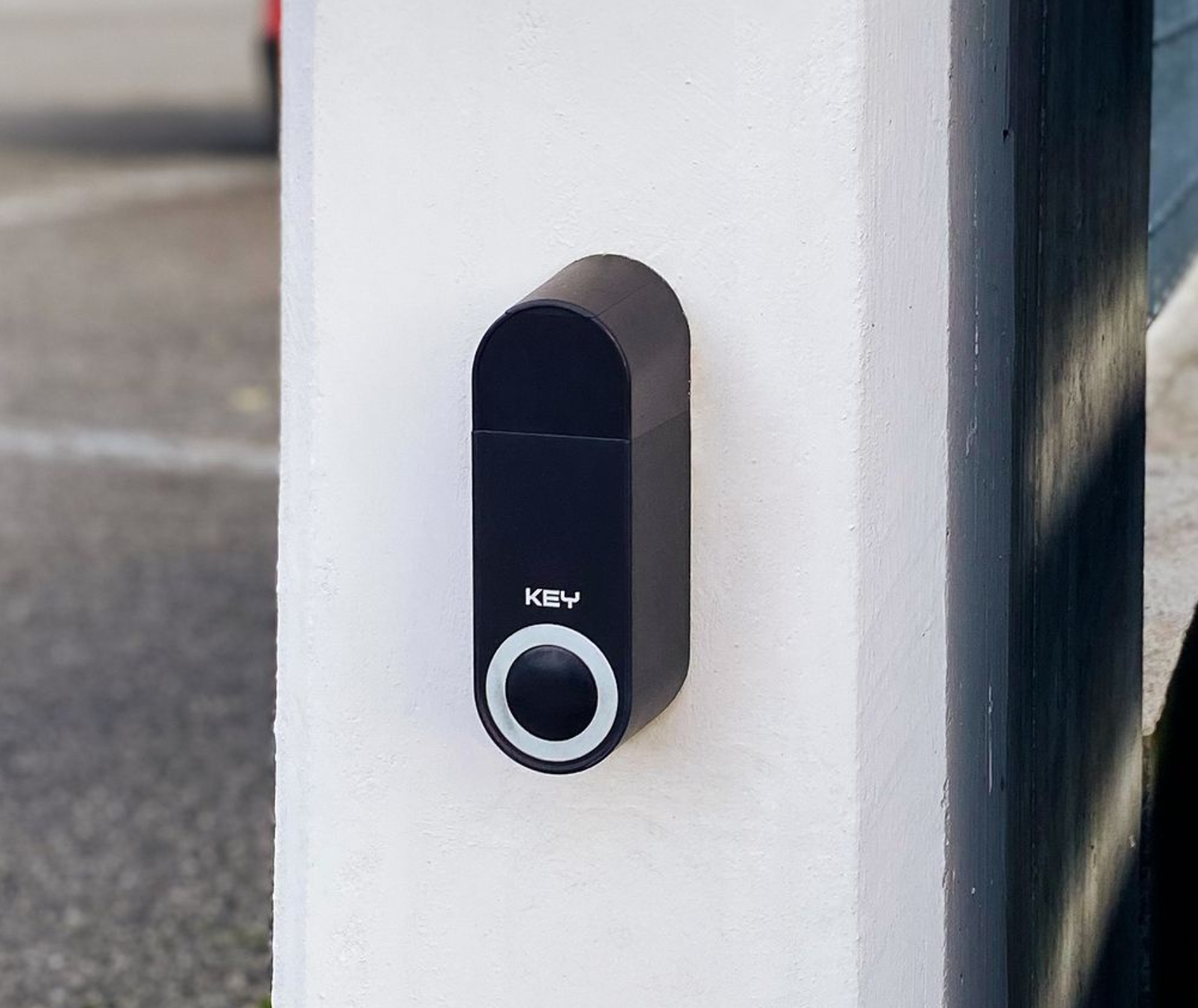

KEY Post with photocells

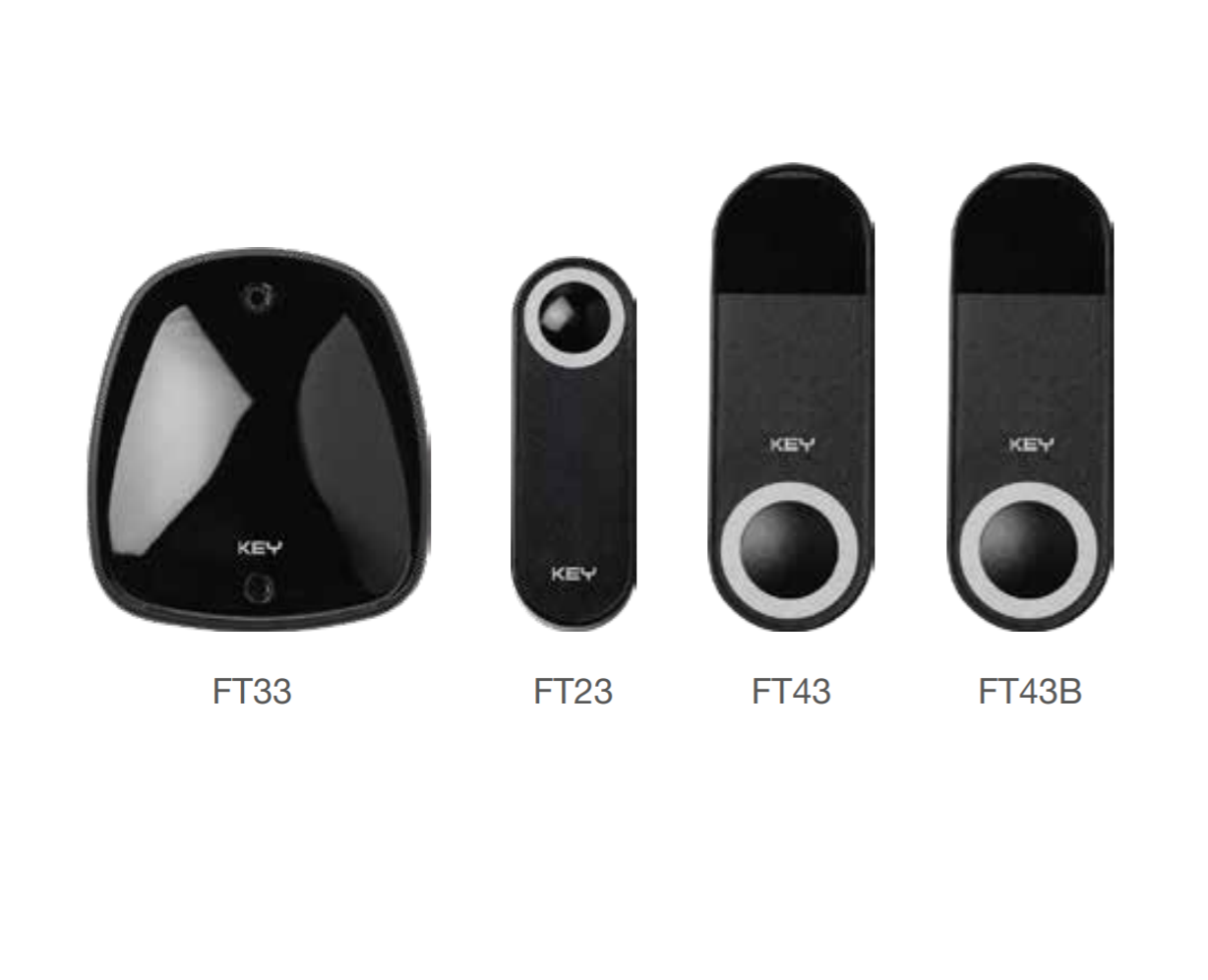

KEY Photocell range
Dimensions
Usage Limits
Technical Features
| Duty cycle percentage | % | 100 |
| Voltage | Vac | 10-30 |
| Voltage | Vdc | 10-40 |
| AC Voltage frequency | Hz | 50/60 |
| Degree of protection | IP | 54 |
| Dimensions (W – D – H) | mm | 30 – 26 – 88 |
| Packaging dimensions (L – D – H) | mm | 82 – 73 – 93 |
| Packaging volume | m3 | 0,00056 |
| Item | kg | 0,11 |
| Min operating temperature | °C | -20 |
| Max operating temperature | °C | +55 |
