Description
Touch keyboard via radio (Rolling Code)
Accessories
Support post h. 100 cm with integrated LED light (10W LED)
Support post h. 100 cm with integrated LED light (10W LED) and accessory housing
Support post h. 100 cm
Support post h. 100 cm with accessory housing
4 channels plug-in receiver, fix or rolling code, 1000 codes, blue led, 433MHz
2-channel universal receiver, fix or rolling code, 1000 codes memory

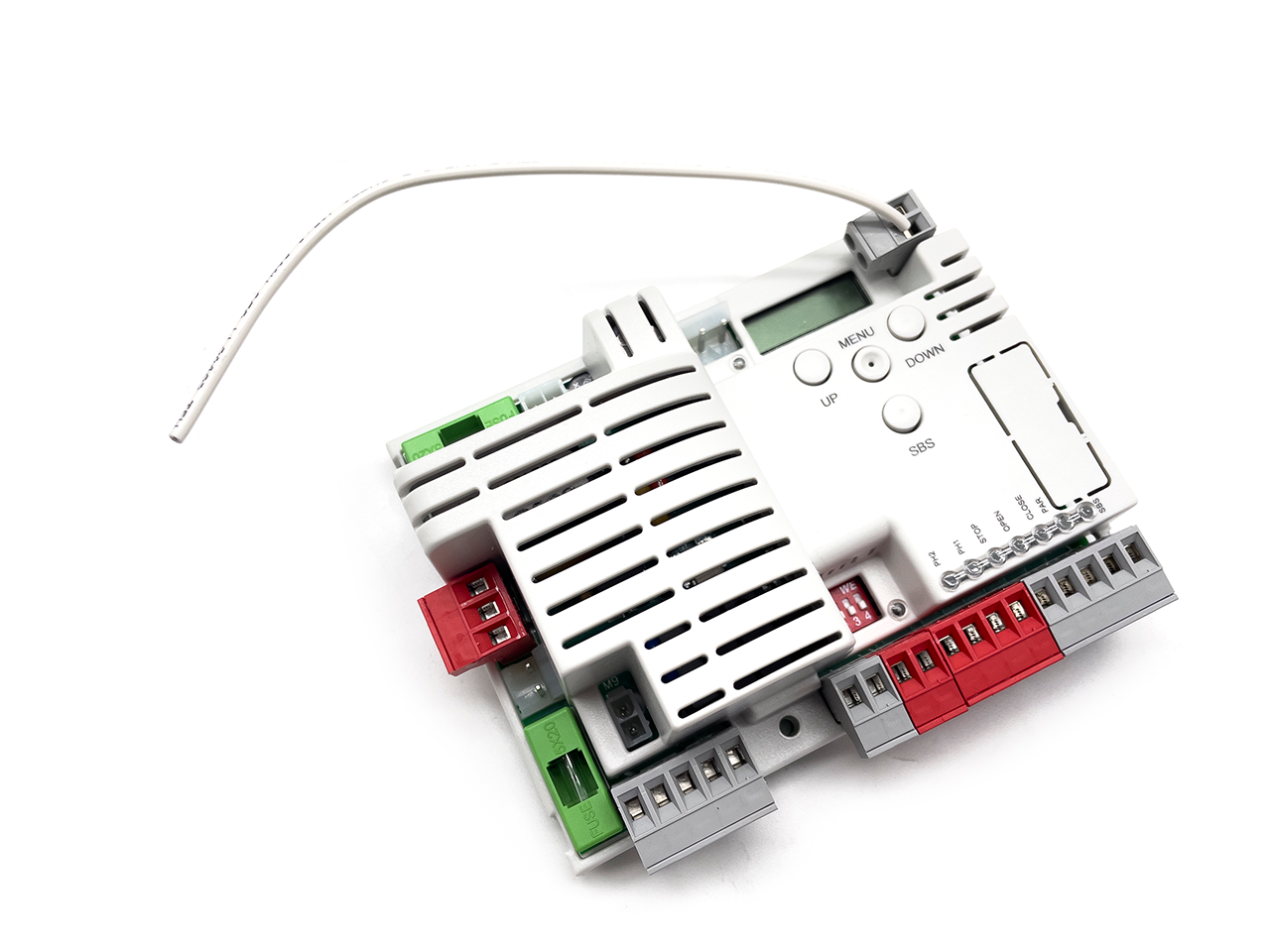

Control unit for swing gates, 24 Vdc, with electronic clutch and slowdown functions. Built-in receiver.
Control unit for one sliding gate motor, overhead door or barrier, 24 Vdc, with electronic clutch and slowdown functions. Built-in receiver
Control unit for one sliding gate motor or overhead door, 230 Vac, with electronic clutch and slowdown functions
Spare 230V heavy duty control unit for 1 motor
24 Vdc LED lights control kit, up to 20 lights, with power supply cable
24 Vdc LED lights control kit, up to 64 lights
plus
Back lighting with RGB LED - 7 selectable colours
Easy customisation of access code
EGO keypad on post
Energy saving mode: the lighting switches off during the day, controlled by an environment sensor
Dimensions
Technical Features
| Duty cycle percentage | % | 100% |
| Voltage | Vdc | 3 |
| Max current | A | 0,2 |
| Appliance isolation class | III | |
| Battery | 2x AAA | |
| Radio frequency | MHz | 433,92 |
| Degree of protection | IP | 55 |
| Dimensions (W – D – H) | mm | 79 – 23 – 79 |
| Packaging dimensions (L – D – H) | mm | 82 – 73 – 93 |
| Packaging volume | m3 | 0,00056 |
| Item | kg | 0,25 |
| Min operating temperature | °C | -10 |
| Max operating temperature | °C | +55 |
| Max range | m | 60 |
Related products
4-channel transmitter, white colour, XR rolling code 433 MHz, with on-board receiver, waterproof
Pair of photocells for external use and flush mounting
4-channel transmitter, magenta colour, XR rolling code 433 MHz, waterproof
