Description

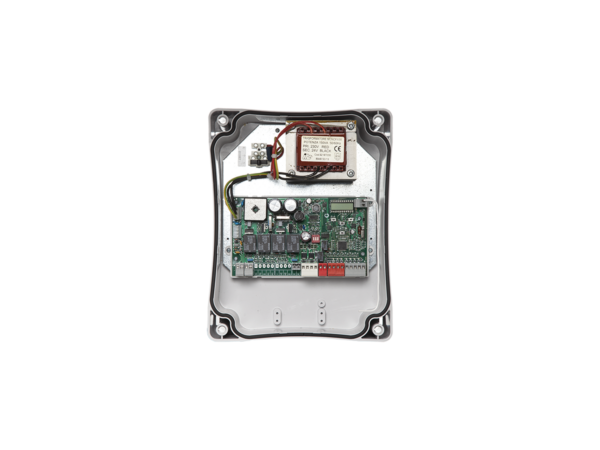

Control unit for swing gates, 24 Vdc, with electronic clutch and slowdown functions. Built-in receiver.
Accessories
900CT20224
Control unit for swing gates, 24 Vdc, with electronic clutch and slowdown functions. Built-in receiver.
| Product code | 900CT20224 |
| Nominal power | 150 W |
Accessories
Plastic box for control unit for two engines
Spare 24V control unit 2 motors (built in radio)
plus
Technical Features
| Duty cycle percentage | % | 70% |
| Voltage | Vac | 230 |
| AC Voltage frequency | Hz | 50/60 |
| Nominal power | W | 150 |
| Peak power | W | 210 |
| Thermal protection | °C | 110 |
| Max flashing light power | W | 15 |
| Max courtesy light power | W | 15 |
| Appliance isolation class | I | |
| Radio frequency | MHz | 433,92 |
| Storable transmitters | 150 | |
| Degree of protection | IP | 54 |
| Dimensions (W – D – H) | mm | 222 – 110 – 275 |
| Packaging dimensions (L – D – H) | mm | 230 – 295 – 122 |
| Packaging volume | m3 | 0,00828 |
| Item | kg | 4,07 |
| Min operating temperature | °C | -20 |
| Max operating temperature | °C | +55 |
| Power supply fuse | 1.6AT 250V | |
| Accessory fuses | 2AT 250V |
