Description

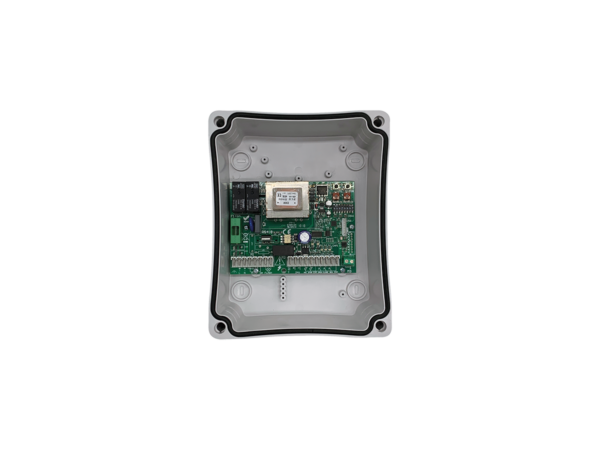

Control unit for one rolling shutter or sliding gate motor, 230 Vac, with electronic clutch, limit switch. Built-in receiver
Accessories
900CT1RS
Control unit for one rolling shutter or sliding gate motor, 230 Vac, with electronic clutch, limit switch. Built-in receiver
| Product code | 900CT1RS |
| Input power | 230 Vac 50 Hz |
| Duty cycle % | 100% |
| Advanced features | Maximum power 700 W |
Accessories
Plastic box for control unit for two engines
plus
Technical Features
| Duty cycle percentage | % | 100% |
| Voltage | Vac | 230 |
| AC Voltage frequency | Hz | 50/60 |
| Nominal power | W | 700 |
| Max flashing light power | W | 60 |
| Appliance isolation class | I | |
| Radio frequency | MHz | 433.92 |
| Storable transmitters | 120 |
| Degree of protection | IP | 54 |
| Dimensions (W – D – H) | mm | 200 – 160 – 90 |
| Packaging dimensions (L – D – H) | mm | 222 – 90 – 60 |
| Packaging volume | m3 | 0,00120 |
| Item | kg | 1.25 |
| Min operating temperature | °C | -20 |
| Max operating temperature | °C | +55 |
| Power supply fuse | 5AF 250V |
