Description

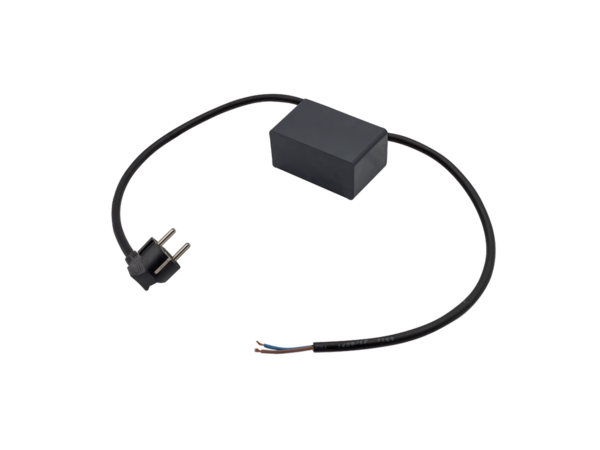

Power supply for control of 24 Vdc LED light, 40W, up to 20 lights, with power supply cable, IP68
Outdoor Lighting System
900BOXLEDXS2
Power supply for control of 24 Vdc LED light, 40W, up to 20 lights, with power supply cable, IP68
| Product code | 900KBOXLEDXL |
| Input power supply | 90-264 VAC 47-63Hz |
| Max Output power supply | 24VDC |
| Max output power | 40W |
Accessories
Night sensor
2X1.5mm cable in 50 m coil, black
Counter plate RAL7016 grey
3-channel connector, IP68
2-channel connector, IP68
Display module cable length 120cm
Led garden light, RAL 7016 grey colour. H= 986 mm
Led garden light, RAL 7016 grey colour. H= 246 mm
Led garden light, up version, RAL 7016 grey colour. H= 404 mm
Led garden light, RAL 7016 grey colour. H= 750 mm
Led garden light, down version, RAL 7016 grey colour. H= 404 mm
Led garden light, RAL 7016 grey colour. H= 600 mm
Led garden light, down version, corten colour. H= 404 mm
Led garden light, RAL 7016 grey colour. H= 240 mm
24 Vdc LED lights control kit, up to 20 lights, with power supply cable
24 Vdc LED lights control kit, up to 64 lights
plus
Easy Installation - Thanks to the extra-low voltage 24Vdc technology, expensive excavations and underground conduits are no longer needed. With an outdoor cable and dedicated connectors, the installation is easy and suitable for the DIY or through your gardener or electrician
Savings -The use of the LED allows a lower energy consumption compared to the use of traditional incandescent bulbs, ensuring a longer life cycle. The cost of energy consumption of the Night Light System, relating to night lights, is around 2 euro per year.*
Performance -Designed and manufactured respecting the requirements of the Italian quality. Efficient and reliable, as it's subject to severe wear resistance tests for both mechanics and electronics. Simple to install, easy to use and safe for your family
Design - Italian style and design at their best, combining the latest technologies with the use of the latest generation of materials. Enhances the gate of your home thanks to the modern shapes and colors, offering a unique style to your outdoor environment
Technical Features
| Duty cycle percentage | % | 100 |
| Voltage | Vac | 90-264 |
| AC Voltage frequency | Hz | 47/63 |
| Standby power | W | 0,35 |
| Peak power | W | 46 |
| Appliance isolation class | II | |
| Degree of protection | IP | 68 |
| Packaging dimensions (L – D – H) | mm | 260 – 210 – 85 |
| Packaging volume | m3 | 0,00464 |
| Item | kg | 0,74 |
| Min operating temperature | °C | -20 |
| Max operating temperature | °C | +55 |
