90014AB2

Accessories

90014AB2

Control unit in box for two 24V motors with 250 VA transformer
Product code 90014AB2
Input power 230 Vac 50 Hz
Output power accessories 24 VAC/VDC
Advanced features NIGHT LIGHT SYSTEM to control Led lights during night hours

Description

Control unit in box for two 24V motors with 250 VA transformer

Reviews

There are no reviews yet.

Be the first to review “90014AB2”

Accessories

Plastic box for control unit for two engines
Logic mainboard for 14A and SUN11024
24V/10A power module
Display module cable length 120cm

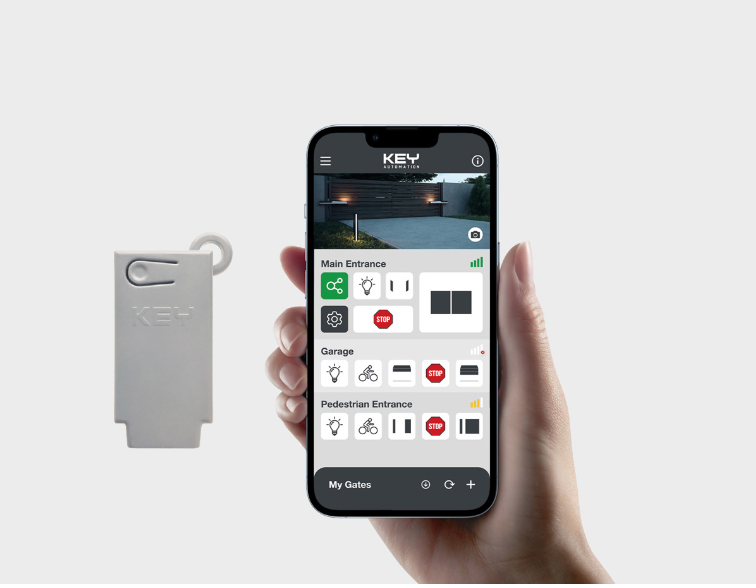

Module for automation control from smartphone, for 14A and HALO
Module for automation control from smartphone, for 14A and HALO
4 channels plug-in receiver, fix or rolling code, 1000 codes, blue led, 433MHz
4-channel transmitter, pink colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, red colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, blue colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, magenta colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, orange colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, green colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, with on-board receiver, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, yellow colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, with on-board receiver, waterproof
Kit with 2x 4-channel 433 MHz transmitters, rolling code, inverted colours charcoal grey/light grey
Kit with 2x 4-channel 433 MHz transmitters with built-in receiver, rolling code, inverted colours charcoal grey/light grey
1-channel touch transmitter, rolling code 433Mhz
2-channel touch transmitter, rolling code 433Mhz
Pair of photocells for external use for small pillars
Pair of photocells for external use and flush mounting
Pair of photocells for external use adjustable through 180°, for small pillars, battery powered
Pair of photocells for external use and flush mounting
The RP25K reflective photo-electric switch has been specially developed for gate automation installations and offers the optimum solution for safety application. Comes with reflector, mounting brackets for the RP 25, mounting brackets for the reflector, insulation for the reflector, including a cable gland M12 and fastening material for the mounting brackets.
Led flashing with courtesy light, crepuscular sensor and built-in antenna
24 Vdc flashing light, with antenna
Touch keyboard via radio (Rolling Code)
Touch keyboard via PowerBUS
Radio controlled digital key pad to be ordered together with all rolling code receivers with batteries included. Digital key pad with new design interface, back-lighting and 2, channels transmitter.
Solar power kit for the automation of road barriers and gates
Led garden light, RAL 7016 grey colour. H= 986 mm
Led garden light, RAL 7016 grey colour. H= 246 mm
Led garden light, up version, RAL 7016 grey colour. H= 404 mm
Led garden light, RAL 7016 grey colour. H= 750 mm
Led garden light, down version, RAL 7016 grey colour. H= 404 mm
Led garden light, RAL 7016 grey colour. H= 600 mm
Led garden light, RAL 7016 grey colour. H= 1000 mm
Led garden light, RAL 7016 grey colour. H= 240 mm
Support post h. 100 cm with integrated LED light (10W LED)
Support post h. 100 cm with integrated LED light (10W LED) and accessory housing
Kit for 24 V battery fixing
Kit of 1.3 Ah lead battery and battery charger
Support post h. 50 cm with integrated LED light (5W LED)
Support post h. 100 cm with integrated LED light (10W LED)
Support post h. 100 cm with accessory housing
Support post h. 100 cm with integrated LED light (10W LED) and accessory housing

plus

Smart phone interface with KUBE
Outdoor lighting system compatible

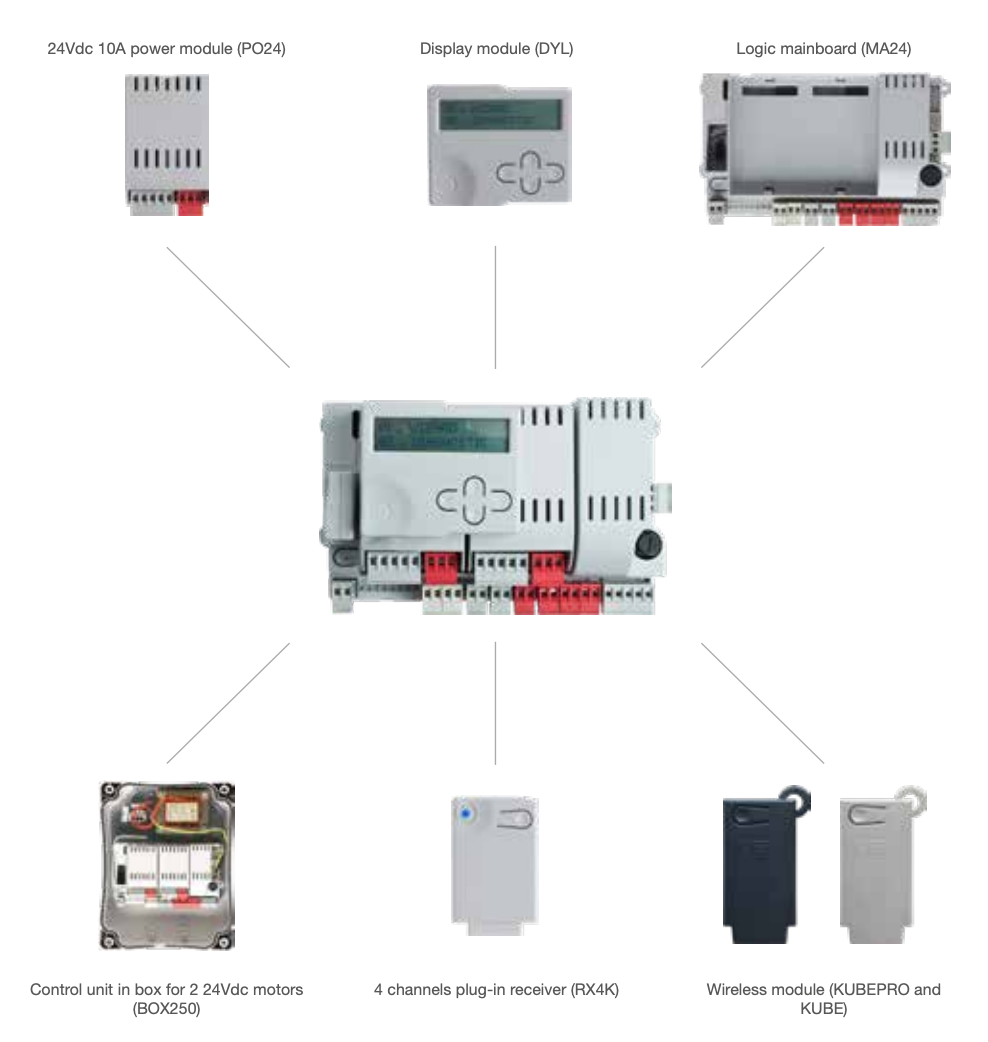

Components & Accessories for 14A

Usage Limits

Technical Features

Input power Vac/Hz 230/50
Output power accesorries Vdc 24
Max motor power W 300
Max working time sec 240
Max pause time sec 0-900
Obstacle detection Yes
Degree of protection IP 54
Dimensions (W – D – H) mm 222 – 275 – 110
Max operating temperature °C +55
Min operating temperature °C -20
