Spare 24V control unit 2 motors (built in radio)
Product code 900CT20224
Nominal power 150 W


Spare 24V control unit 2 motors (built in radio)


There are no reviews yet.

Be the first to review “999CT20224”


Plastic box for control unit for two engines

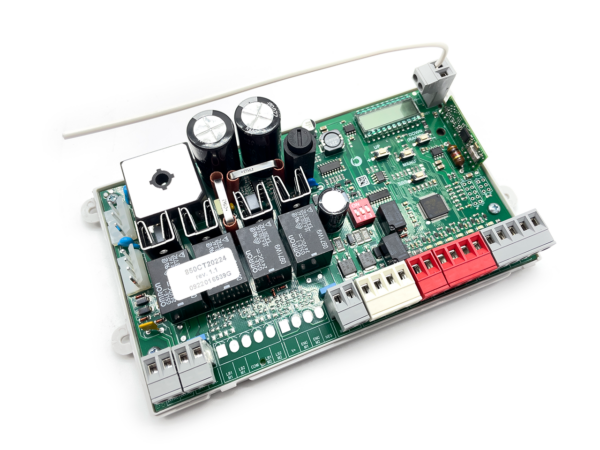

Control unit for swing gates, 24 Vdc, with electronic clutch and slowdown functions. Built-in receiver.


Technical Features

Duty cycle percentage % 70%
Voltage Vac 230
AC Voltage frequency Hz 50/60
Nominal power W 150
Peak power W 210
Thermal protection °C 110
Max flashing light power W 15
Max courtesy light power W 15
Appliance isolation class I
Radio frequency MHz 433,92
Storable transmitters 150
Degree of protection IP 54
Dimensions (W – D – H) mm 222 – 110 – 275
Packaging dimensions (L – D – H) mm 230 – 295 – 122
Packaging volume m3 0,00828
Item kg 4,07
Min operating temperature °C -20
Max operating temperature °C +55
Power supply fuse 1.6AT 250V
Accessory fuses 2AT 250V
