| Product code | 900RP25K |
| Operating voltage | 10 – 40 VDC or 24VAC ±25% |
| Range | 0.5 – 15 m |
| Protection | IP65 |
| Additional features | alignment and contamination indicator |

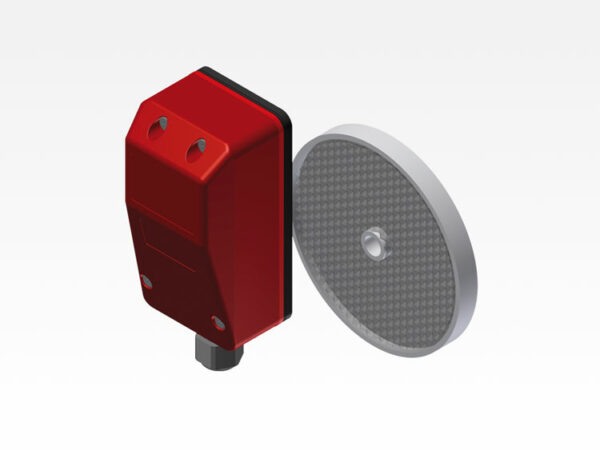

The RP25K reflective photo-electric switch has been specially developed for gate automation installations and offers the optimum solution for safety application.
Comes with reflector, mounting brackets for the RP 25, mounting brackets for the reflector, insulation for the reflector, including a cable gland M12 and fastening material for the mounting brackets.
You must be logged in to post a review.
| operating voltage | 10-40VDC | 24VAC ± 25% |
| Operational | <100ms | after power on |
| Current consumption max | 30mA | 24V |
| Type of light | RED | 680nm pulsed polarised |
| Areprture angle | 1.5° | approx total angle |
| Indications | dual LED | red & green |
| Light beam interrupted | LED | Lights up red |
| Light beam uninterrupted | LED | Lights up green |
| Additional function | test input | when 0V at terminal 1 the transmitter switches off |
| Type of connection | screw terminal | 1.5 mm max |
| Output | Relay | changeover contact |
| Switch rating | min and max | min. 1mA/min. 5VDC max. 0. A/ 0VAC max. 0.5A/48VDC (resistive load) |
| Ranges | m | 0.5 – 15 m |
| Dimensions (WxLxH) | mm | 86x44x39 |
| Weight | g | 60 |
| Min operating temperature | °C | -25 |
| Max operating temperature | °C | +60 |
