      900MA24F

      Accessories

      900MA24F

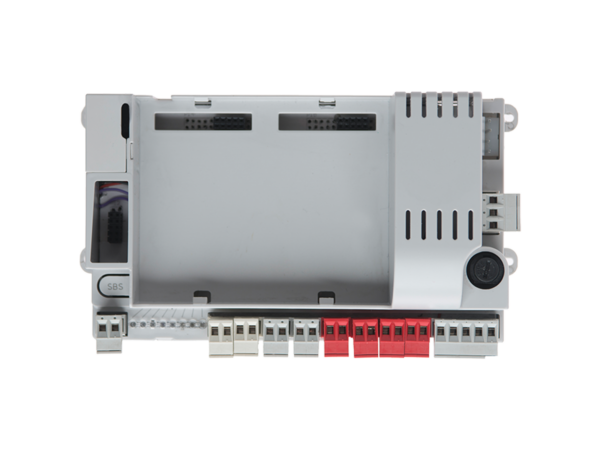

      Logic mainboard for SUN5024F
      Product code 900MA24
      Input power 230 VAC 50 HZ
      Output power accessories 24 VDC
      Advanced features NIGHT LIGHT SYSTEM to control Led lights during night hours

      Description

      Logic mainboard for SUN5024F

      Reviews

      There are no reviews yet.

      Be the first to review “900MA24F”

      Accessories

      Plastic box for control unit for two engines
      24V/10A power module
      Display module cable length 120cm
      Kit of 1.3 Ah lead battery and battery charger
      4 channels plug-in receiver, fix or rolling code, 1000 codes, blue led, 433MHz
      2-channel universal receiver, fix or rolling code, 1000 codes memory
      Module for automation control from smartphone, for 14A and HALO
      Module for automation control from smartphone, for 14A and HALO
      Touch keyboard via radio (Rolling Code)
      Touch keyboard via PowerBUS
      Radio controlled digital key pad to be ordered together with all rolling code receivers with batteries included. Digital key pad with new design interface, back-lighting and 2, channels transmitter.
      Led flashing with courtesy light, crepuscular sensor and built-in antenna
      24 Vdc flashing light, with antenna
      Pair of photocells for external use for small pillars
      Pair of photocells for external use and flush mounting
      Pair of photocells for external use adjustable through 180°, for small pillars, battery powered
      Pair of photocells for external use and flush mounting
      The RP25K reflective photo-electric switch has been specially developed for gate automation installations and offers the optimum solution for safety application. Comes with reflector, mounting brackets for the RP 25, mounting brackets for the reflector, insulation for the reflector, including a cable gland M12 and fastening material for the mounting brackets.

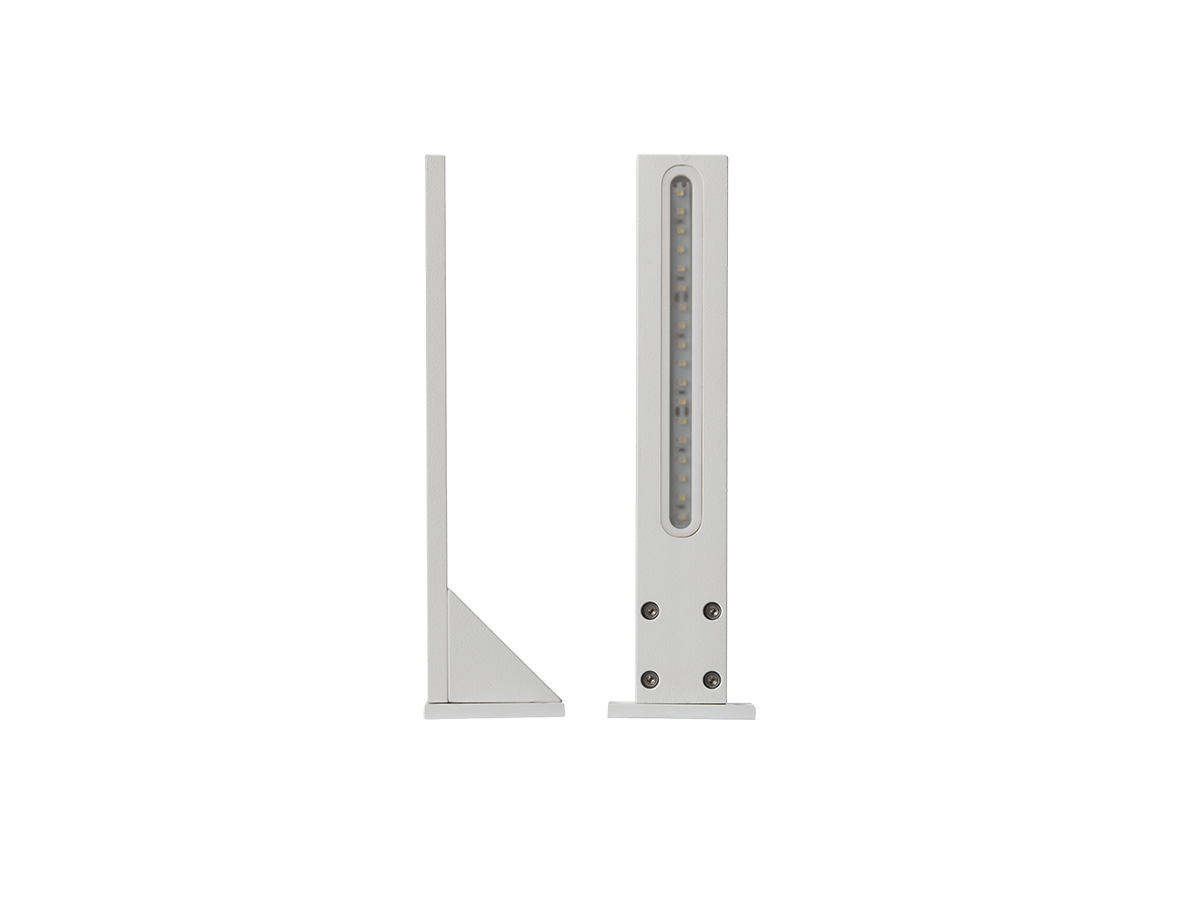

      Support post h. 100 cm with integrated LED light (10W LED)
      Support post h. 100 cm with integrated LED light (10W LED) and accessory housing
      Support post h. 50 cm with integrated LED light (5W LED)
      Support post h. 100 cm with integrated LED light (10W LED)
      Support post h. 100 cm with integrated LED light (10W LED) and accessory housing
      Led garden light, RAL 7016 grey colour. H= 986 mm
      Led garden light, up version, RAL 7016 grey colour. H= 404 mm
      Led garden light, RAL 7016 grey colour. H= 750 mm
      Led garden light, down version, RAL 7016 grey colour. H= 404 mm
      Led garden light, RAL 9010 white colour. H= 246 mm
      Led garden light, RAL 7016 grey colour. H= 600 mm
      Led garden light, RAL 7016 grey colour. H= 1000 mm
      Led garden light, RAL 7016 grey colour. H= 240 mm

      plus

      Compatible with KUBE app

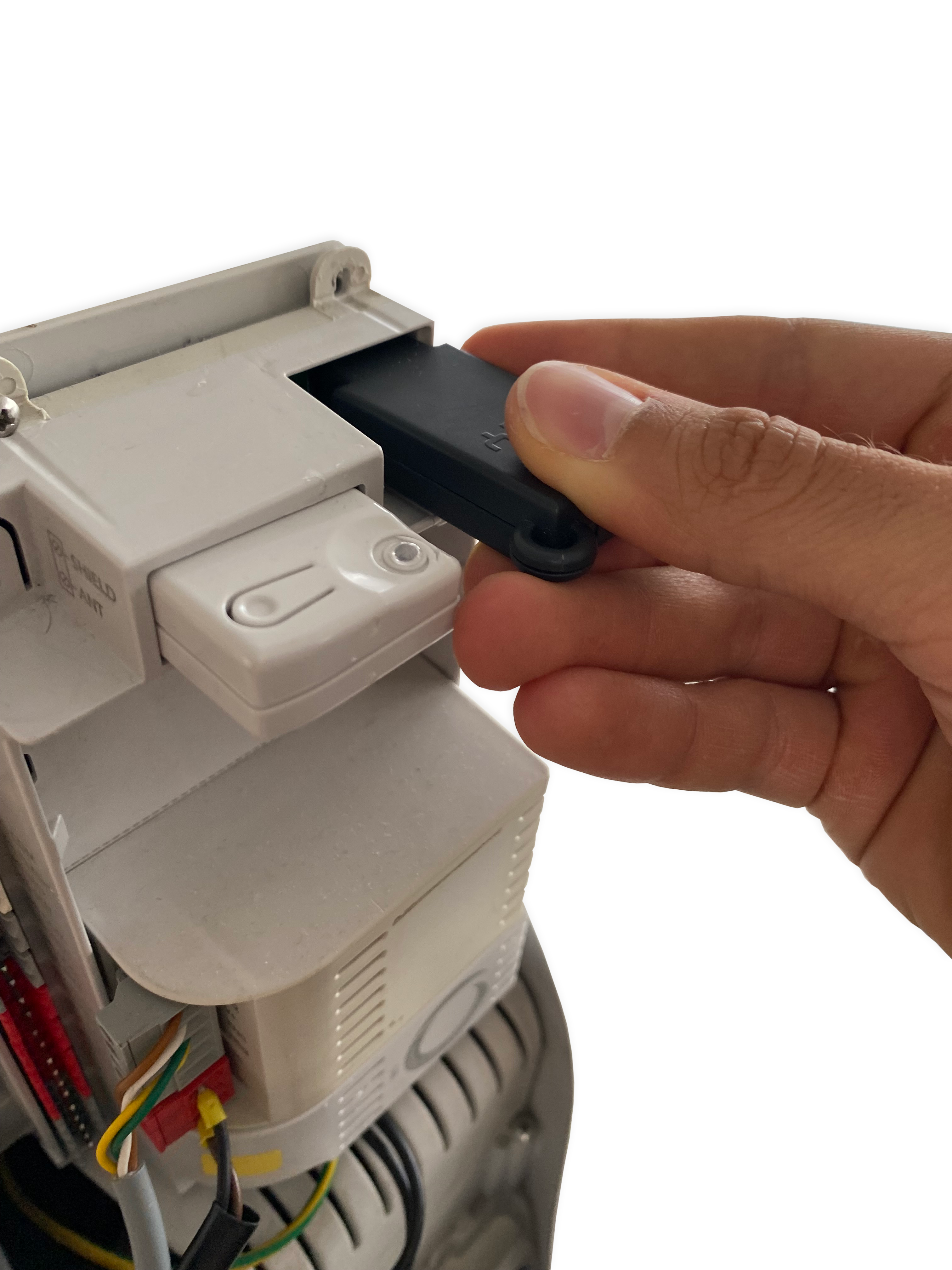

      DYL or KUBE PRO to program system

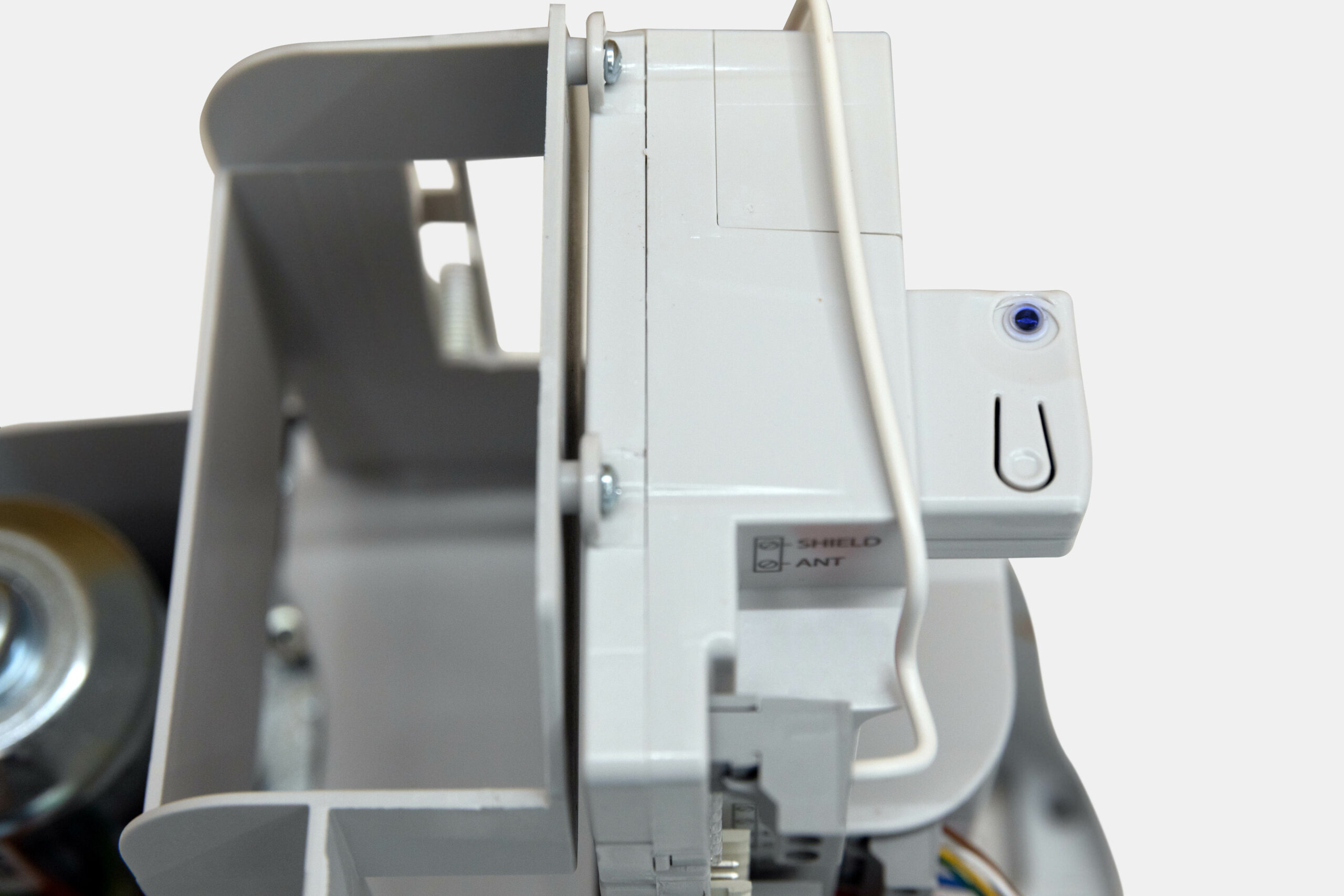

      Plug in receiver - up to 1000 codes
      SUN5024F logic board

      Technical Features

      Input power Vac/Hz 230/50
      Output power accesorries Vdc 24
      Max motor power W 300
      Max working time sec 240
      Max pause time sec 0-900
      Obstacle detection Yes
      Degree of protection IP 54
      Max operating temperature °C +55
      Min operating temperature °C -20
