Description
Solar power kit for the automation of road barriers and gates
Accessories
900KSOLEAU
Solar power kit for the automation of road barriers and gates
| Product code | 900KSOLEAU |
| Battery | High quality AGM tech. 18 Ah, capable of enduring numerous deep discharge cycles |
| Mounting bracket | Stainless steel mounting kit offering easy installation |
| Solar panel size | 30W |
Accessories
Control unit for swing gates, 24 Vdc, with electronic clutch and slowdown functions. Built-in receiver.
Control unit for one sliding gate motor, overhead door or barrier, 24 Vdc, with electronic clutch and slowdown functions. Built-in receiver
Control unit in box for two 24V motors with 250 VA transformer
Logic mainboard for SUN5024F

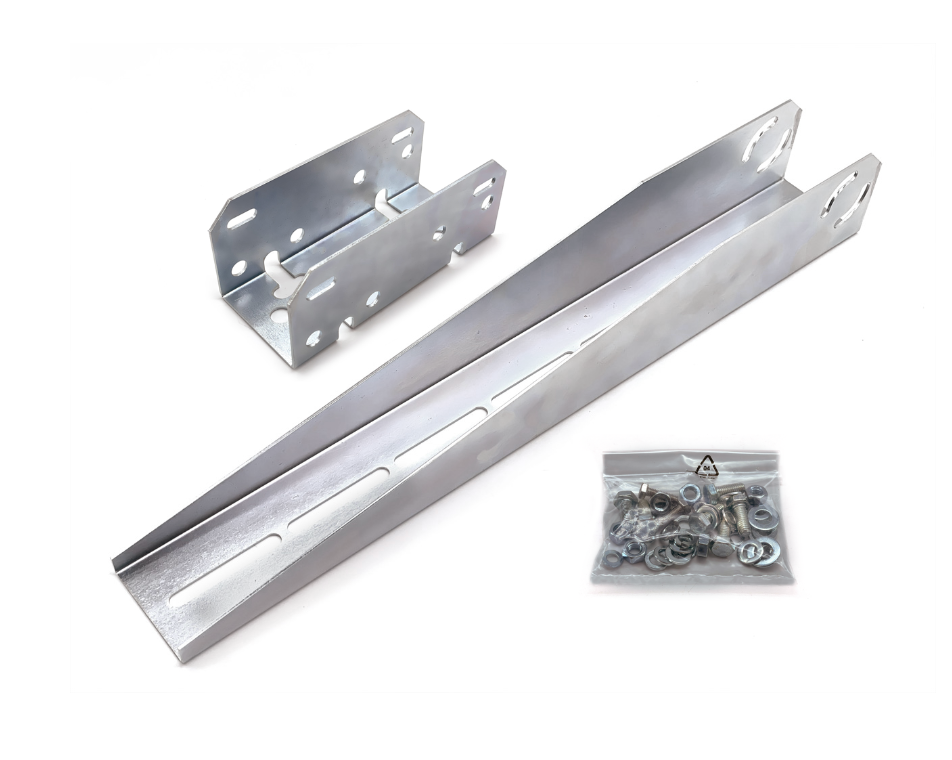

Fixing hardware for solar panel

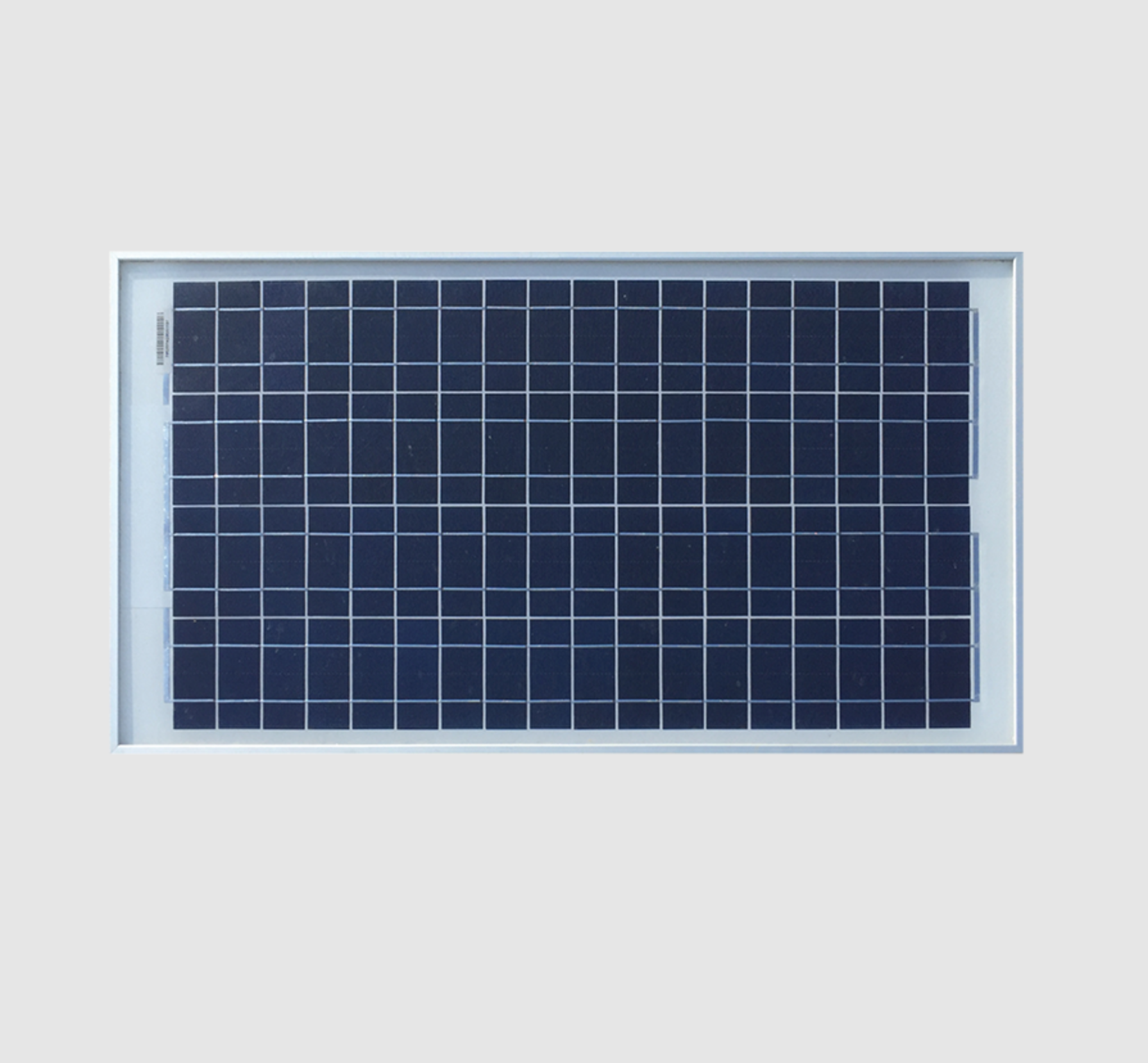

30 W Solar panel
plus
Versatile in harsh environments
Fixing hardware for Solar
30W Panel
Technical Features
| Panel – Peak Power (Pmax) | W | 30 |
| Panel – Voltage at Pmac (Vmp) | V | 34.4 |
| Panel – Current at Pmac (Imp) | A | 0.87 |
| Panel -Open circuit Voltage (Voc) | W | 43.2 |
| Panel – Short-circuit Current (Isc) | A | 0.96 |
| Panel Working temperature | °C | -40 ~ +85 |
| Dimensions (L-D-H) | mm | 316 – 396 – 188 |
| Working temperature Case with control card | °C | -20 ~ +50 |
| Working humidity | % | 10 ~ 90, no condensation |
| Case with control card – PV voltage | V | ≤ 50 |
| Case with control card – Maximum current | A | 20 |
| Case with control card – Rated voltage | V | 24 |
| Wiring | PCB terminal | ≤6mm2 |
| Case with control card -Degree of protection | IP | 56 |
Related products
4 channels plug-in receiver, fix or rolling code, 1000 codes, blue led, 433MHz
4-channel transmitter, yellow colour, XR rolling code 433 MHz, waterproof
Pair of photocells for external use and flush mounting
