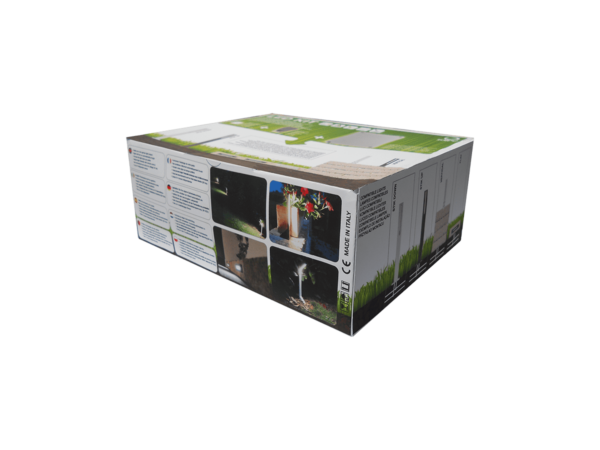

900KBOXLEDXL

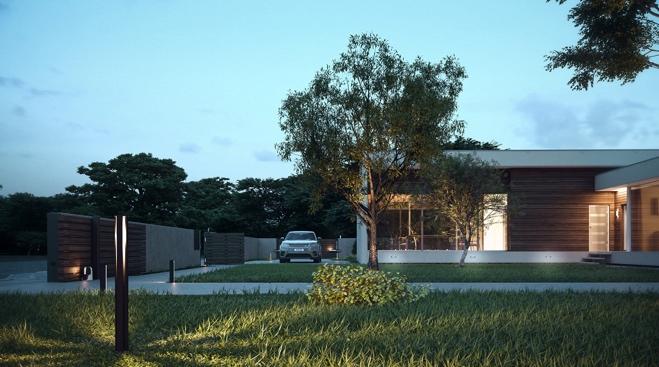

Outdoor Lighting System

900KBOXLEDXL

24 Vdc LED lights control kit, up to 64 lights
Product code 900KBOXLEDXL
Max connectable lamps Up to 64 lights of 18 led
Output 4 – 24VDC
Number of zones Upto 4
Optional night sensor Yes

Description

24 Vdc LED lights control kit, up to 64 lights

Reviews

There are no reviews yet.

Be the first to review “900KBOXLEDXL”

Accessories

Led garden light, RAL 7016 grey colour. H= 986 mm
Led garden light, RAL 7016 grey colour. H= 246 mm
Led garden light, up version, RAL 7016 grey colour. H= 404 mm
Led garden light, RAL 7016 grey colour. H= 750 mm
Led garden light, down version, RAL 7016 grey colour. H= 404 mm
Led garden light, RAL 7016 grey colour. H= 600 mm
Led garden light, RAL 7016 grey colour. H= 1000 mm
Recessed LED light (not compatible with 14A control unit) neutral white
Led garden light, RAL 7016 grey colour. H= 240 mm
Stake for ground cable fixing
2X1.5mm cable in 50 m coil, black
Counter plate RAL7016 grey
3-channel connector, IP68
2-channel connector, IP68
Power supply for control of 24 Vdc LED light, 40W, up to 20 lights, with power supply cable, IP68
Display module cable length 120cm
4-channel transmitter, blue colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, magenta colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, orange colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, green colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, with on-board receiver, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, yellow colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, with on-board receiver, waterproof
Kit with 2x 4-channel 433 MHz transmitters, rolling code, inverted colours charcoal grey/light grey
Kit with 2x 4-channel 433 MHz transmitters with built-in receiver, rolling code, inverted colours charcoal grey/light grey
1-channel touch transmitter, rolling code 433Mhz
2-channel touch transmitter, rolling code 433Mhz

plus

EASY INSTALLATION Extra-low voltage 24Vdc technology
SAFETY Ease the night vision when security cameras are installed
COMFORT Defines the width of the passage during the night
DESIGN Italian style and design at their best

Usage Limits

Technical Features

Power Supply VAC 90-260 50-60HZ
Max power supply W 100
Power stand-by W <0.5
Maximum output load 24VDC sixteen 18-led lights for
each of the 4 outputs /
thirty-two 18-led lights
for 2 outputs (CH1-CH4)
Protection Degree IP 54
Night sensor optional Yes
Max number of transmitters stored 30
Dimensions mm 222 – 110 -275
Multiple zones 4
Max operating temperature °C +55
Min operating temperature °C -20
