Description

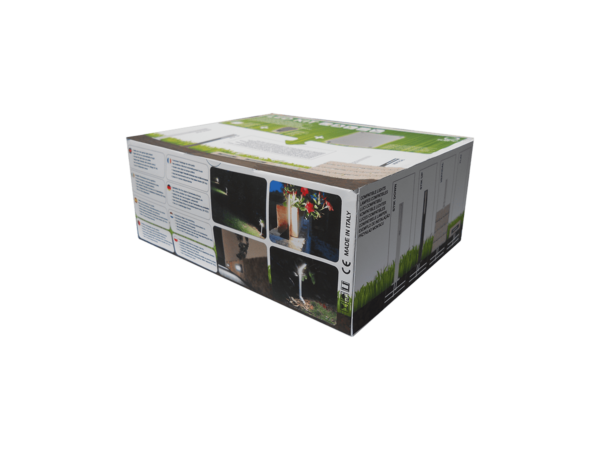

24 Vdc LED lights control kit, up to 20 lights, with power supply cable
Outdoor Lighting System
900KBOXLED
24 Vdc LED lights control kit, up to 20 lights, with power supply cable
| Product code | 900KBOXLED |
| Max connectable lamps | Up to 32 lights of 18 led |
| Output | 4 – 24VDC |
| Number of zones | Upto 4 |
| Optional night sensor | Yes |
Accessories
Led garden light, RAL 7016 grey colour. H= 986 mm
Led garden light, RAL 7016 grey colour. H= 246 mm
Led garden light, up version, RAL 7016 grey colour. H= 404 mm
Led garden light, RAL 7016 grey colour. H= 750 mm
Led garden light, down version, RAL 7016 grey colour. H= 404 mm
Led garden light, RAL 7016 grey colour. H= 600 mm
Led garden light, RAL 7016 grey colour. H= 1000 mm
Recessed LED light (not compatible with 14A control unit) warm white
Led garden light, RAL 7016 grey colour. H= 240 mm
Night sensor
Stake for ground cable fixing
2X1.5mm cable in 50 m coil, black
Counter plate RAL7016 grey
Counter plate RAL7016 grey
3-channel connector, IP68
2-channel connector, IP68
Display module cable length 120cm
4-channel transmitter, blue colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, magenta colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, orange colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, green colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, with on-board receiver, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, yellow colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, with on-board receiver, waterproof
Kit with 2x 4-channel 433 MHz transmitters, rolling code, inverted colours charcoal grey/light grey
Kit with 2x 4-channel 433 MHz transmitters with built-in receiver, rolling code, inverted colours charcoal grey/light grey
1-channel touch transmitter, rolling code 433Mhz
2-channel touch transmitter, rolling code 433Mhz
2-channel universal receiver, fix or rolling code, 1000 codes memory
plus
EASY INSTALLATION Extra-low voltage 24Vdc technology
SAFETY Ease the night vision when security cameras are installed
COMFORT Defines the width of the passage during the night
DESIGN Italian style and design at their best

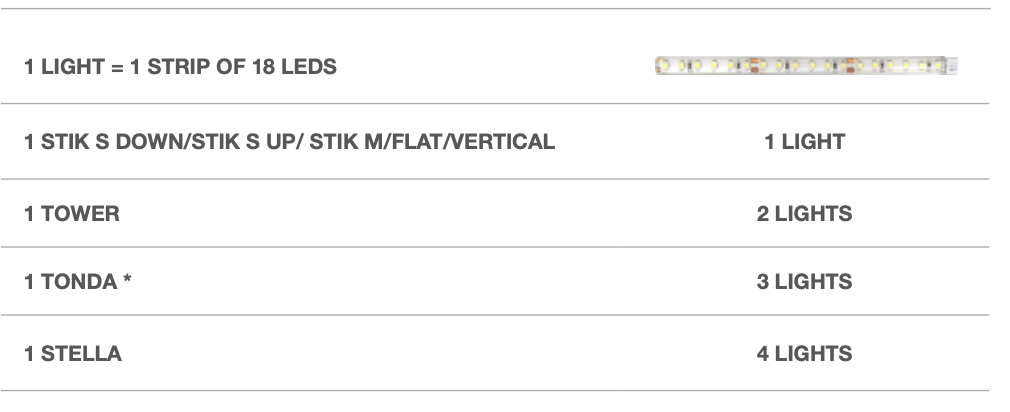

Usage Limits
Technical Features
| Power Supply | VAC | 90-260 50-60HZ |
| Max power supply | W | 25 |
| Power stand-by | W | <0.5 |
| Maximum output load | 24VDC | eight 18-led lights for each of the 4 outputs / thirty-two 18-led lights for 1 output |
| Protection Degree | IP | 54 |
| Night sensor optional | Yes | |
| Max number of transmitters stored | 30 | |
| Dimensions | mm | 160 – 90 -200 |
| Multiple zones | 4 | |
| Max operating temperature | °C | +55 |
| Min operating temperature | °C | -20 |
