Description

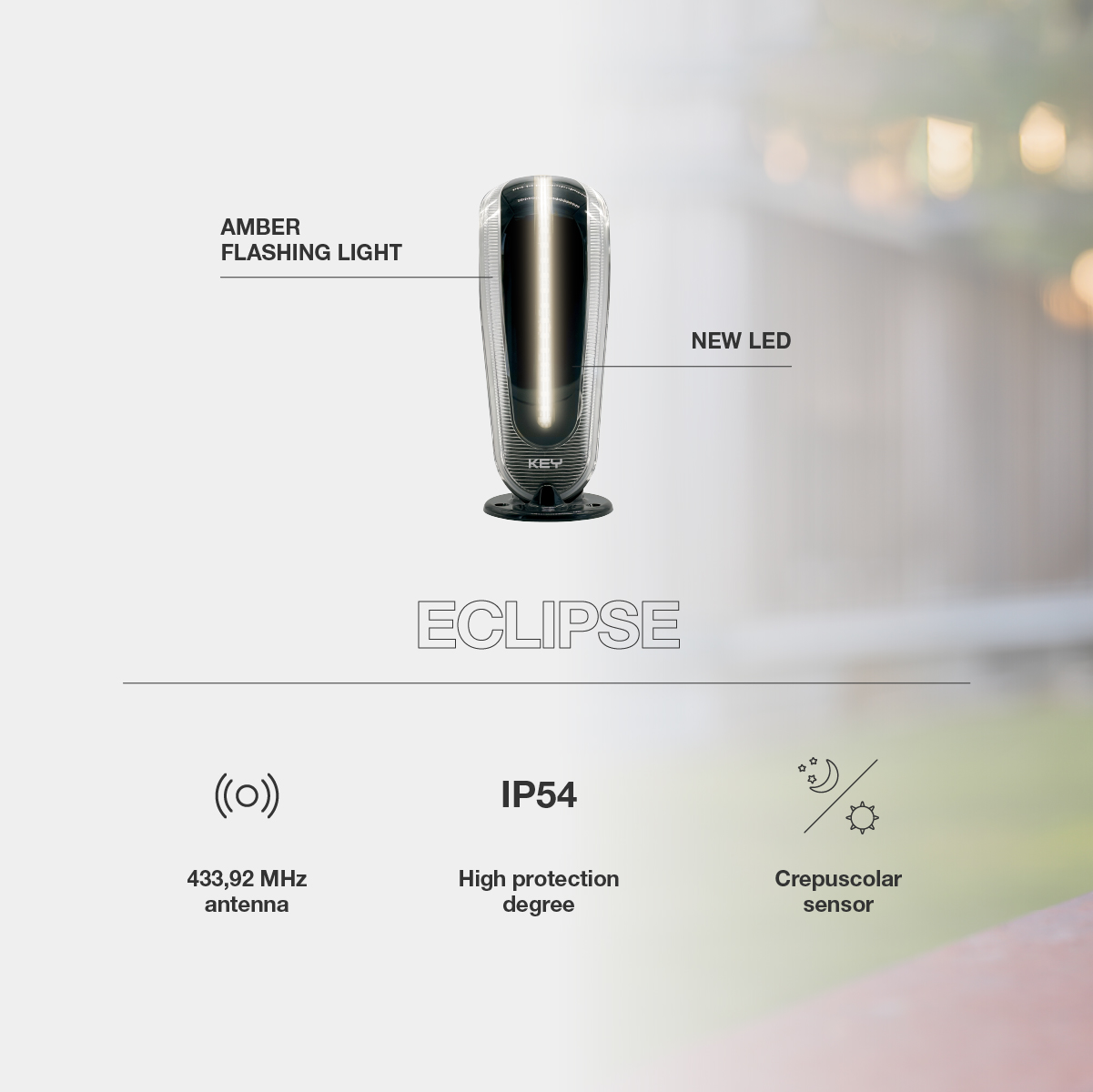

Led flashing with courtesy light, crepuscular sensor and built-in antenna
Accessories
900ECLIPSE
Led flashing with courtesy light, crepuscular sensor and built-in antenna
| Product code | 900ECLIPSE |
| New | Wall support |
| New | Integrated antenna |
| New | Generation LEDs |
Accessories
Control unit for swing gates, 24 Vdc, with electronic clutch and slowdown functions. Built-in receiver.
Control unit for one sliding gate motor, overhead door or barrier, 24 Vdc, with electronic clutch and slowdown functions. Built-in receiver
Control unit for one sliding gate motor or overhead door, 230 Vac, with electronic clutch and slowdown functions
Control unit in box for two 24V motors with 250 VA transformer
Logic mainboard for SUN5024F
Control unit for one rolling shutter or sliding gate motor, 230 Vac, with electronic clutch, limit switch. Built-in receiver
24 Vdc LED lights control kit, up to 20 lights, with power supply cable
24 Vdc LED lights control kit, up to 64 lights
plus
Eclipse technology
New generation LEDs

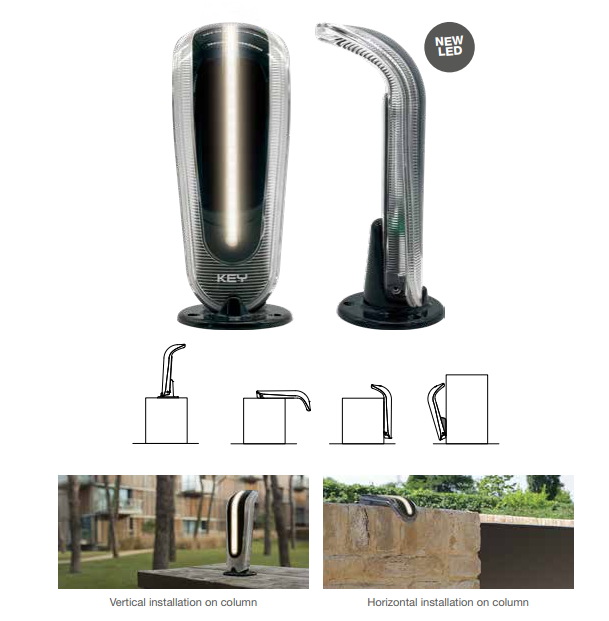

Multiple installation options
Usage Limits
Technical Features
| Duty cycle percentage | % | 100% |
| Voltage | V | 1 |
| Voltage | Vac | 20-24 |
| Voltage | Vdc | 24-35 |
| AC Voltage frequency | Hz | 50/60 |
| Nominal power | W | 1,7 |
| Peak power | W | 1,9 |
| Color rendering index (CRI) | 80 | |
| Colour temperature | K | 4000 |
| Max courtesy light power | W | 1,5 |
| Max courtesy light current | A | 1,8 |
| Appliance isolation class | III | |
| Radio frequency | MHz | 433,92 |
| Degree of protection | IP | 54 |
| Dimensions (W – D – H) | mm | 75 – 98 – 190 |
| Packaging dimensions (L – D – H) | mm | 160 – 65 – 175 |
| Packaging volume | m3 | 0,00182 |
| Item | kg | 0,266 |
| Min operating temperature | °C | -20 |
| Max operating temperature | °C | +55 |
