900KUND3024

900KUND3024

Underground Kit for dual swing gates with leaves up to 3.5m, 24 Vdc motors, control box 14AB2 with night light function included. Includes 1x SUB-44WR, 1x SUB-44R and 1x RX4 plug-in receiver. Foundation box NOT included.
Product code 900KUND3024
90° Opening time 18-25 s
Control unit 14AB2
Nominal power 120 W
Max leaf weight 600 kg

Description

Underground Kit for dual swing gates with leaves up to 3.5m, 24 Vdc motors, control box 14AB2 with night light function included.
Includes 1x SUB-44WR, 1x SUB-44R and 1x RX4 plug-in receiver.
Foundation box NOT included.

Reviews

There are no reviews yet.

Be the first to review “900KUND3024”

Accessories

12 V horizontal electric lock. Up to 2000kg
Cataphoresis housing box with unlock lever SB3
Cataphoresis housing box without unlock lever
Stainless steel housing box with unlock level SB3

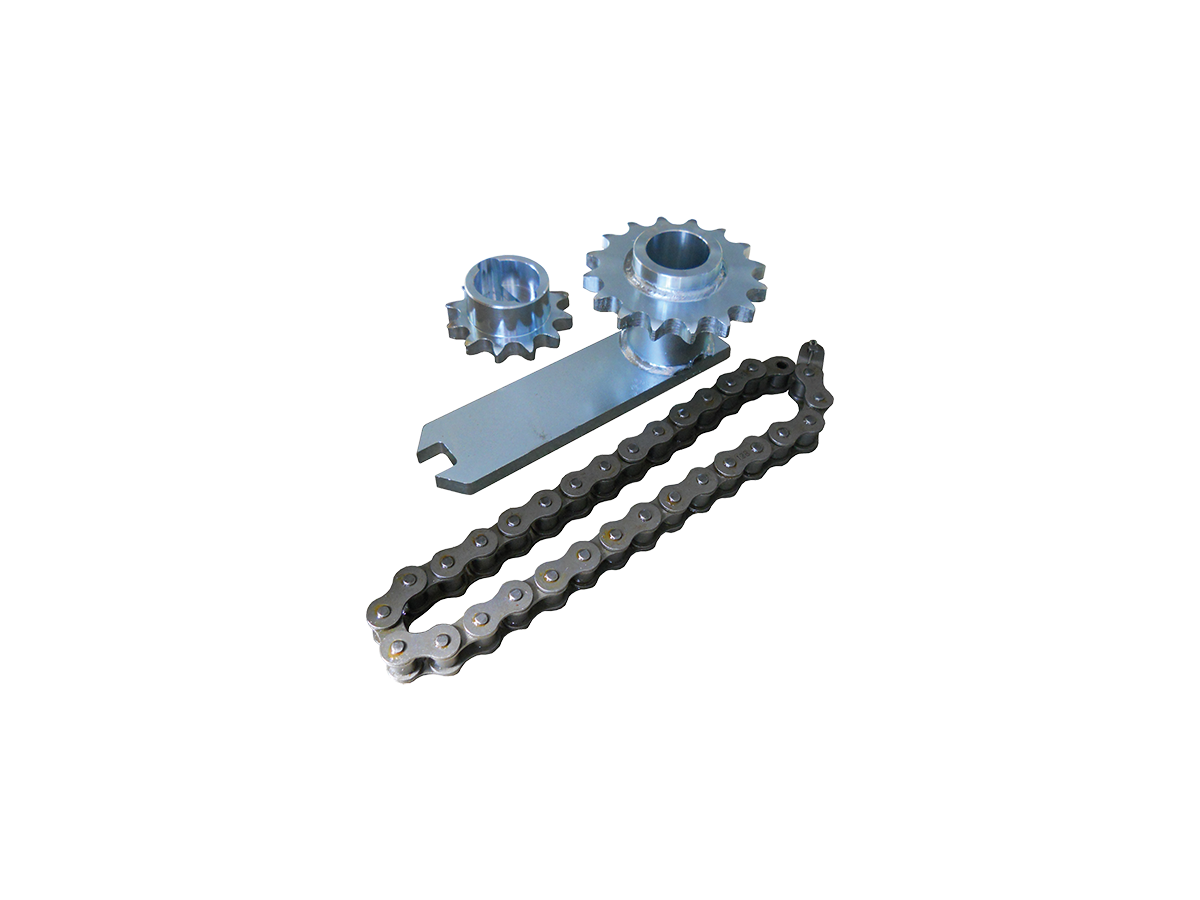

Kit for over 100° opening for leaves of L=3000 mm
Kit for over 100° opening for leaves of L=3000 mm
Control unit for swing gates, 24 Vdc, with electronic clutch and slowdown functions. Built-in receiver.
Control unit in box for two 24V motors with 250 VA transformer
Logic mainboard for 14A and SUN11024
24V/10A power module
Display module cable length 120cm
Module for automation control from smartphone, for 14A and HALO
Module for automation control from smartphone, for 14A and HALO
4 channels plug-in receiver, fix or rolling code, 1000 codes, blue led, 433MHz
2-channel universal receiver, fix or rolling code, 1000 codes memory
4-channel transmitter, pink colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, red colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, blue colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, magenta colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, orange colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, green colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, with on-board receiver, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, yellow colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, with on-board receiver, waterproof
Kit with 2x 4-channel 433 MHz transmitters, rolling code, inverted colours charcoal grey/light grey
Kit with 2x 4-channel 433 MHz transmitters with built-in receiver, rolling code, inverted colours charcoal grey/light grey
1-channel touch transmitter, rolling code 433Mhz
2-channel touch transmitter, rolling code 433Mhz
Pair of photocells for external use for small pillars
Pair of photocells for external use and flush mounting
Pair of photocells for external use adjustable through 180°, for small pillars, battery powered
Pair of photocells for external use and flush mounting
The RP25K reflective photo-electric switch has been specially developed for gate automation installations and offers the optimum solution for safety application. Comes with reflector, mounting brackets for the RP 25, mounting brackets for the reflector, insulation for the reflector, including a cable gland M12 and fastening material for the mounting brackets.
Led flashing with courtesy light, crepuscular sensor and built-in antenna
24 Vdc flashing light, with antenna
Key selector with all-metal body and key code 01
Touch keyboard via radio (Rolling Code)
Touch keyboard via PowerBUS
Radio controlled digital key pad to be ordered together with all rolling code receivers with batteries included. Digital key pad with new design interface, back-lighting and 2, channels transmitter.
Solar power kit for the automation of road barriers and gates
Led garden light, RAL 7016 grey colour. H= 986 mm
Led garden light, RAL 7016 grey colour. H= 246 mm
Led garden light, up version, RAL 7016 grey colour. H= 404 mm
Led garden light, RAL 7016 grey colour. H= 750 mm
Led garden light, down version, RAL 7016 grey colour. H= 404 mm
Led garden light, RAL 7016 grey colour. H= 600 mm
Led garden light, RAL 7016 grey colour. H= 1000 mm
Led garden light, RAL 7016 grey colour. H= 240 mm
2X1.5mm cable in 50 m coil, black
Pair of recessed boxes
3-channel connector, IP68
2-channel connector, IP68
Kit for 24 V battery fixing
Kit of 1.3 Ah lead battery and battery charger
Support post h. 50 cm with integrated LED light (5W LED)
Support post h. 100 cm with integrated LED light (10W LED)
Support post h. 100 cm
Support post h. 100 cm with accessory housing
Support post h. 100 cm with integrated LED light (10W LED) and accessory housing
Support post h. 50 cm
Low voltage box
Spare PS300/PS400 bearing cap 47x13.5

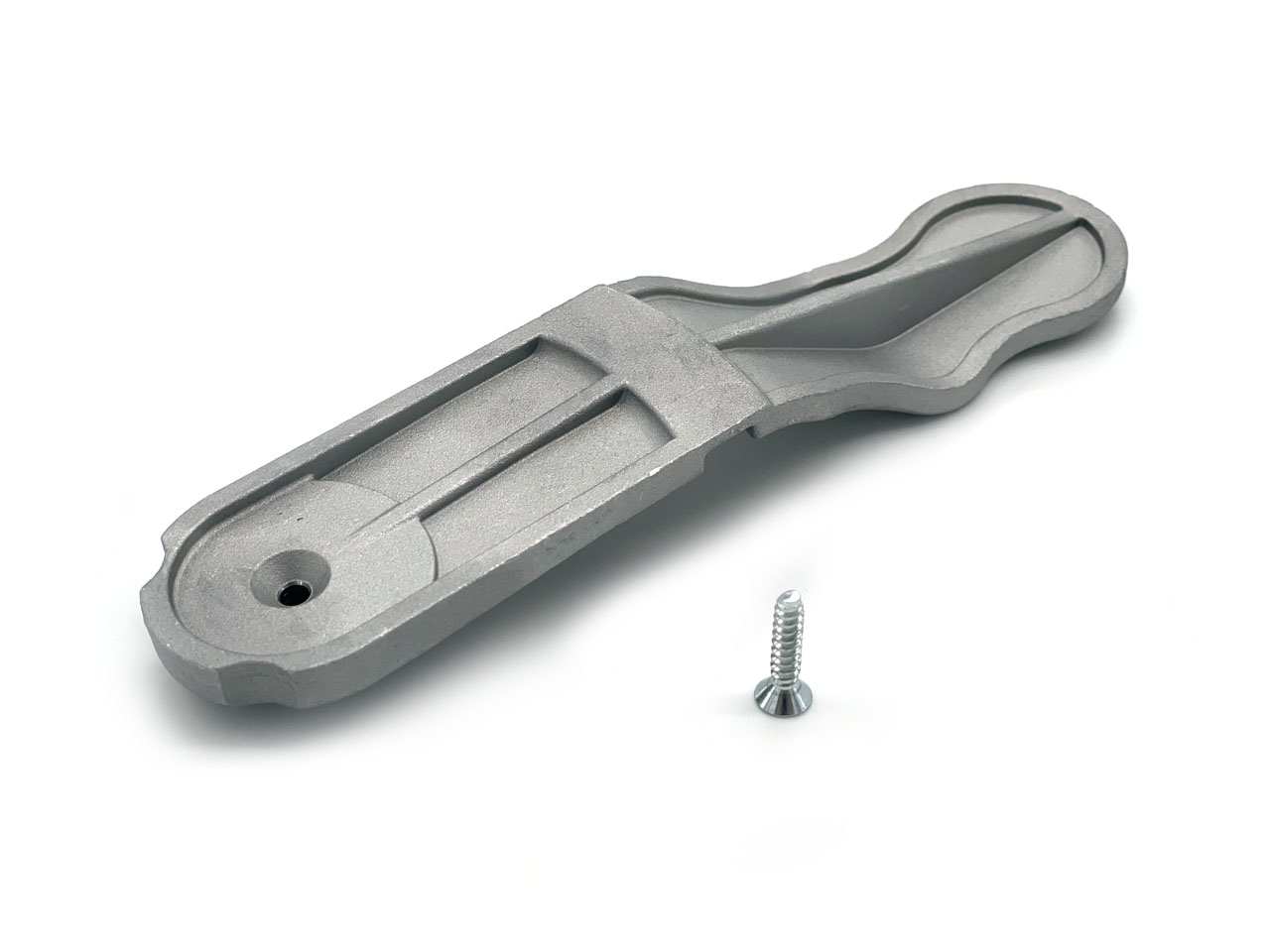

Spare UND unlock lever accessory bag

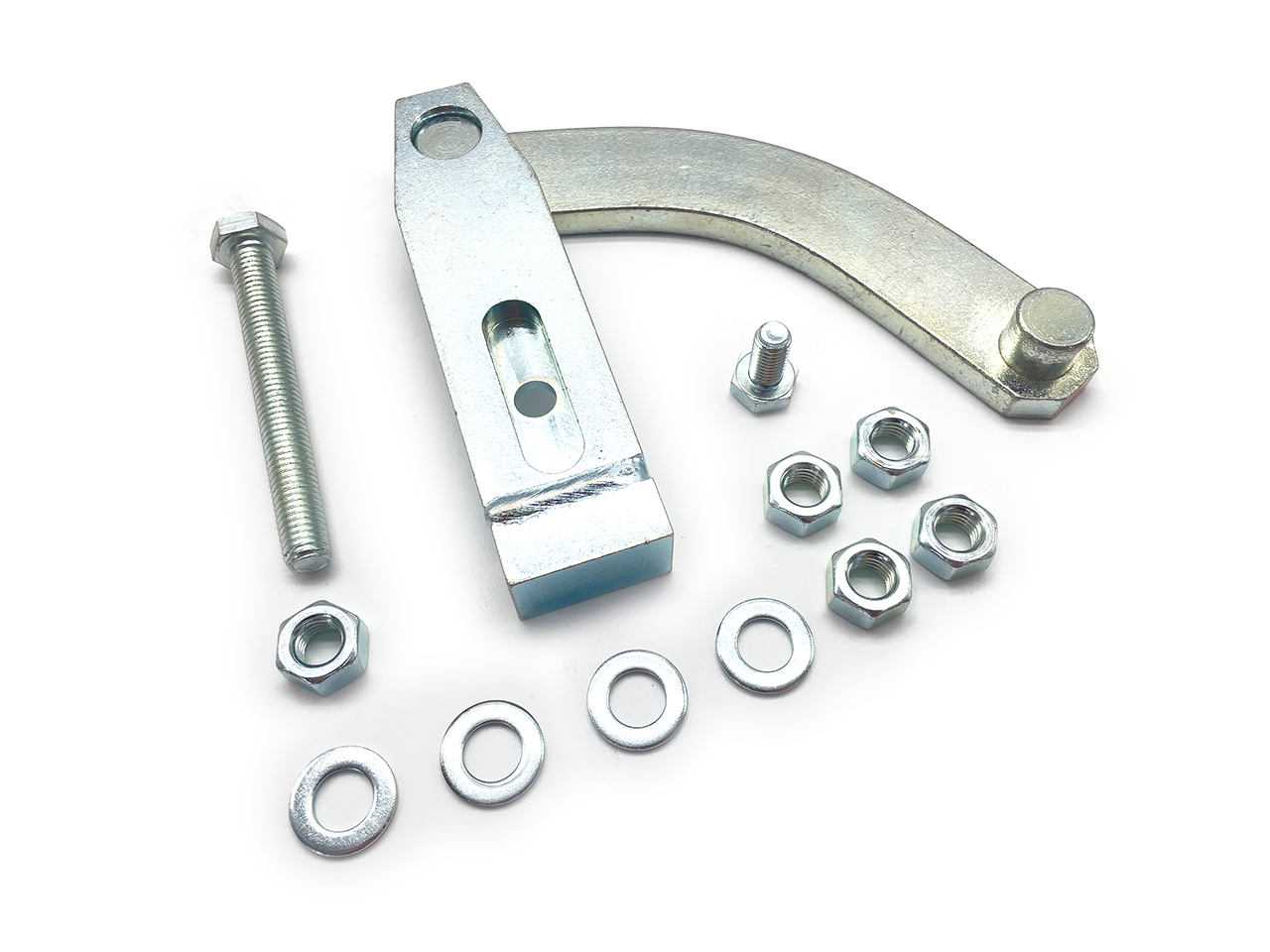

Spare joint levers for UND

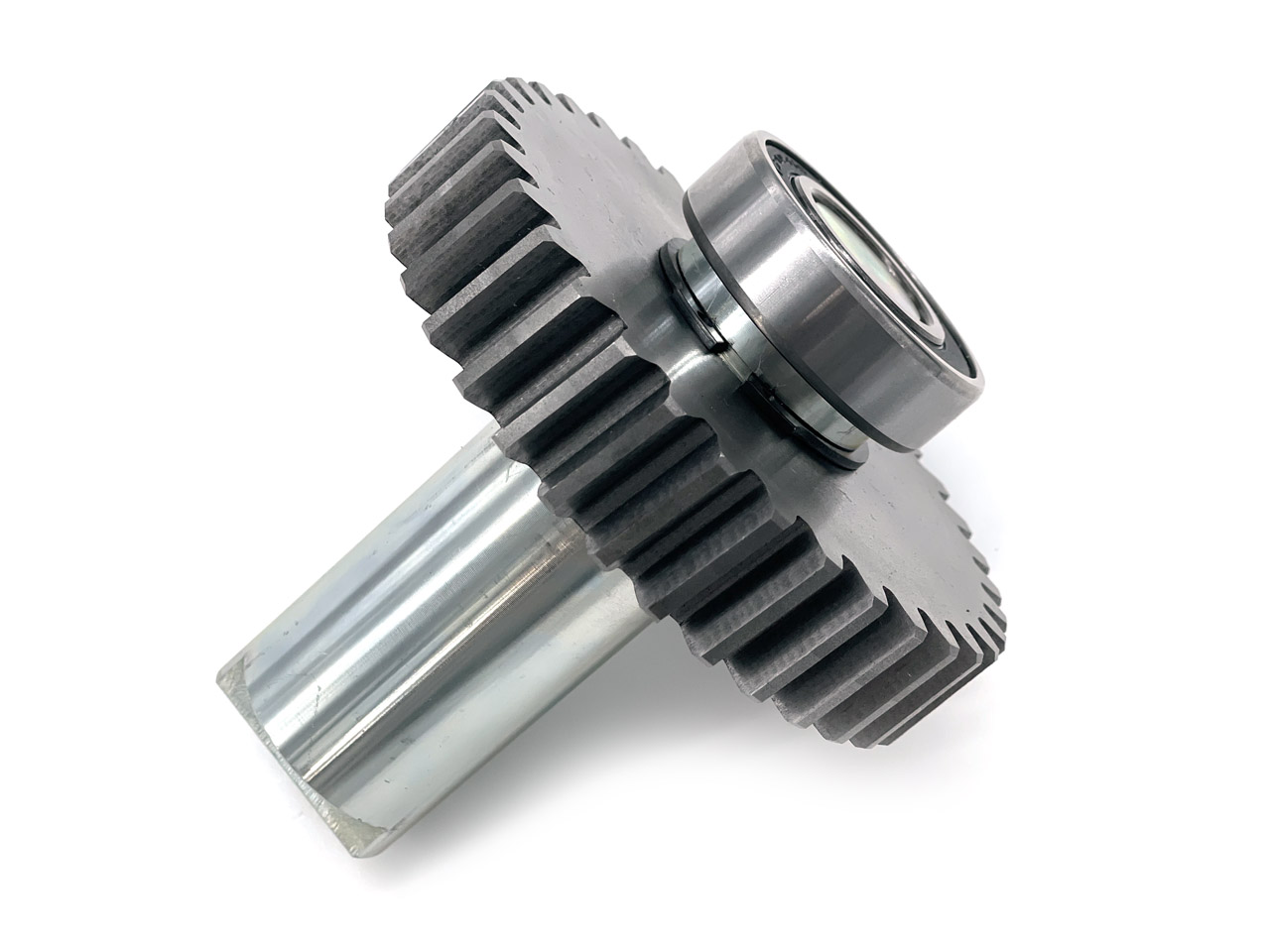

Spare UND main shaft

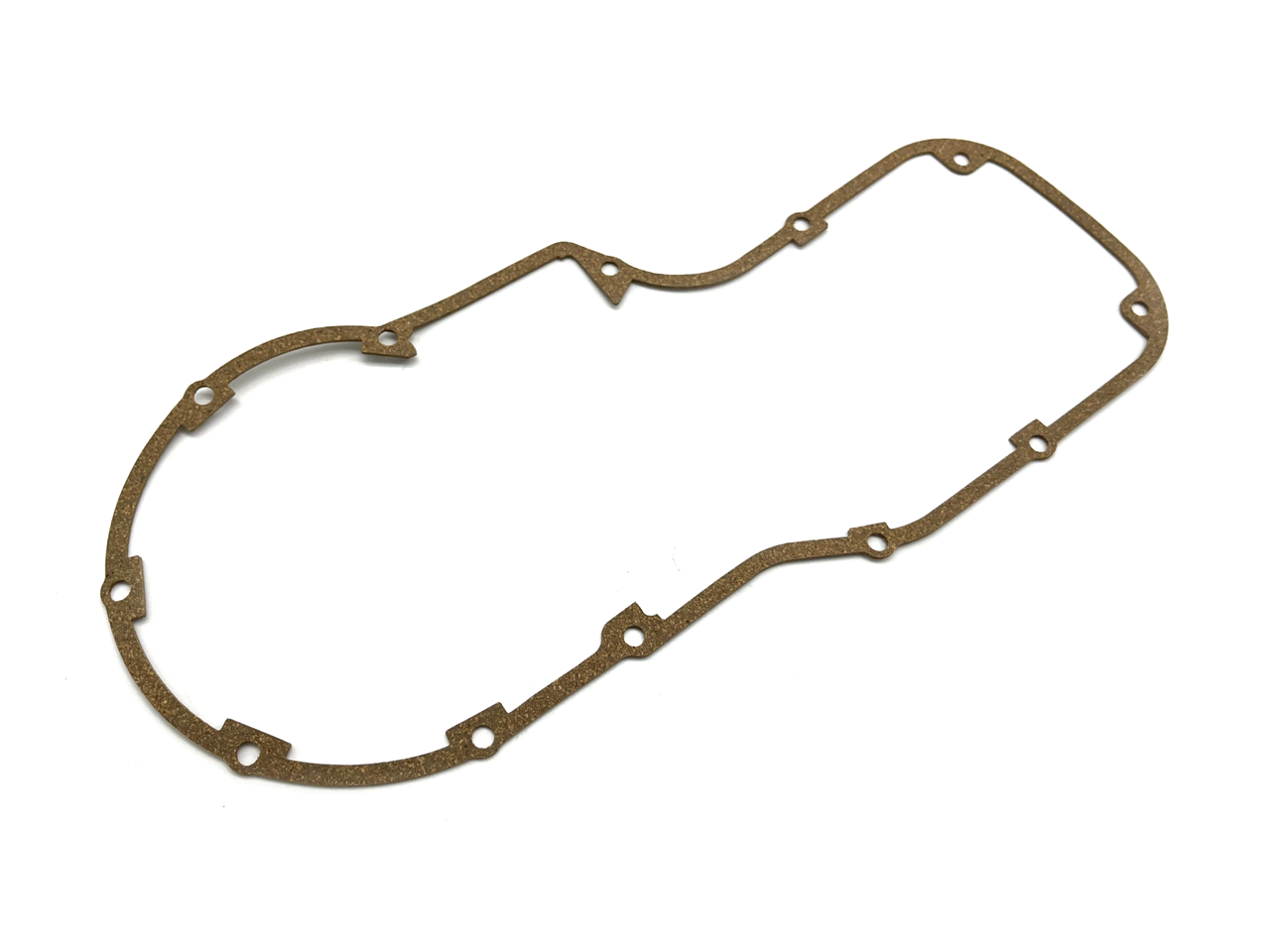

Spare UND cork/rubber gasket

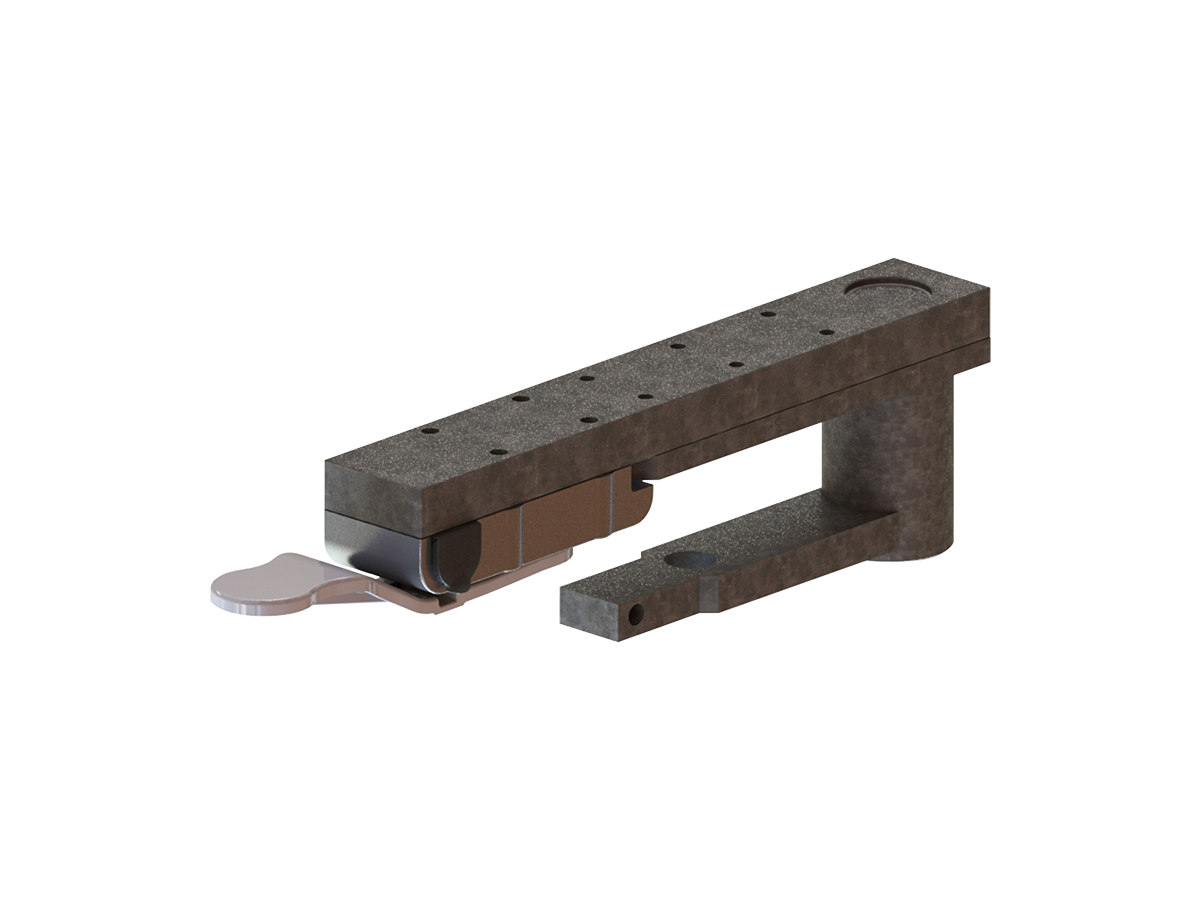

Spare SB3 handle

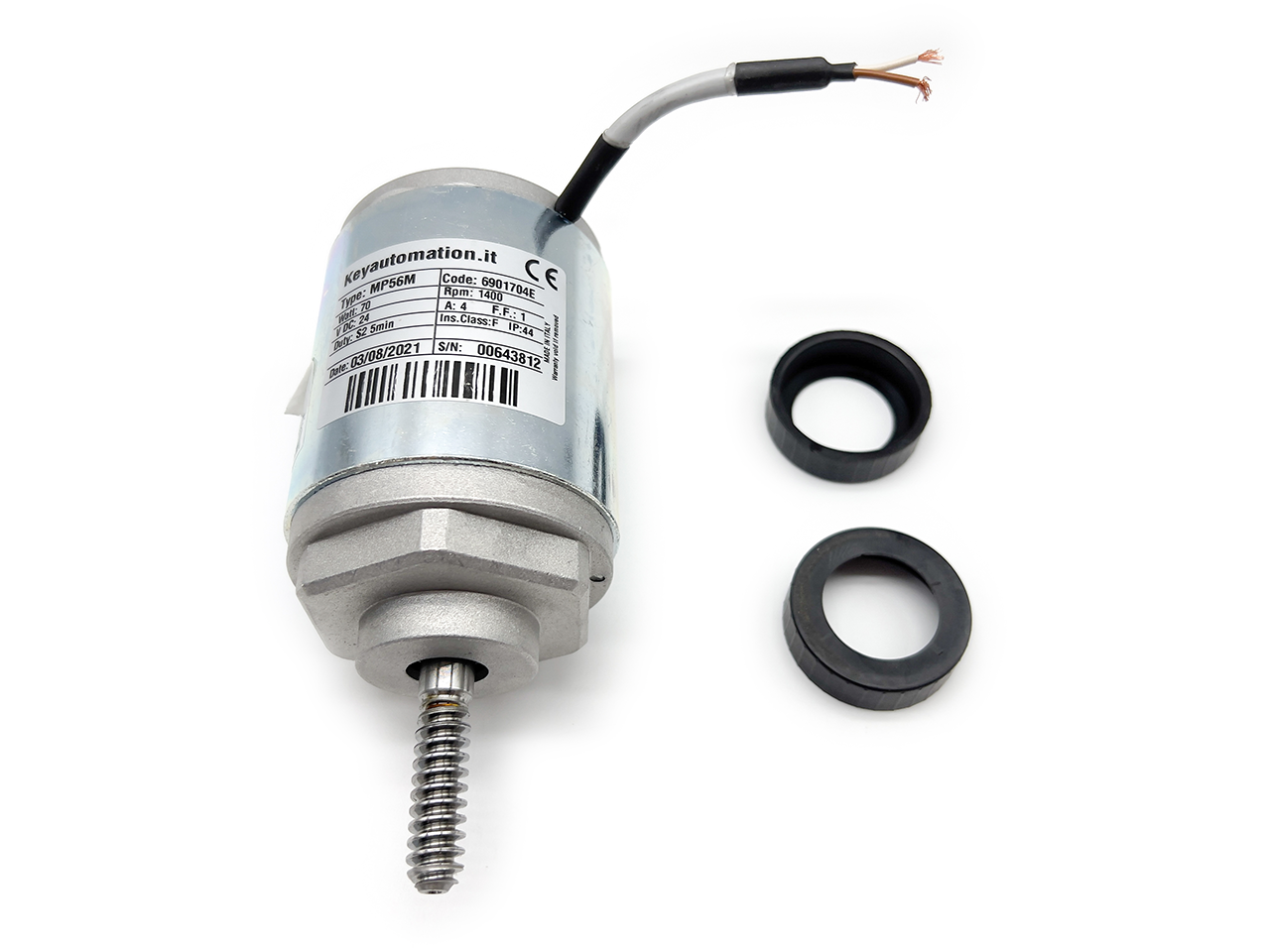

Spare UND24VDC motor assembly

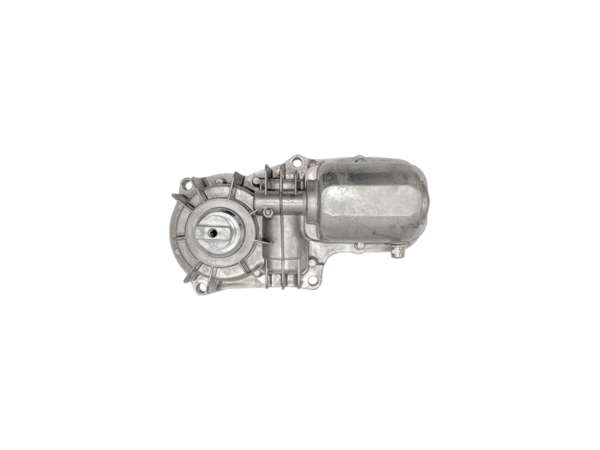

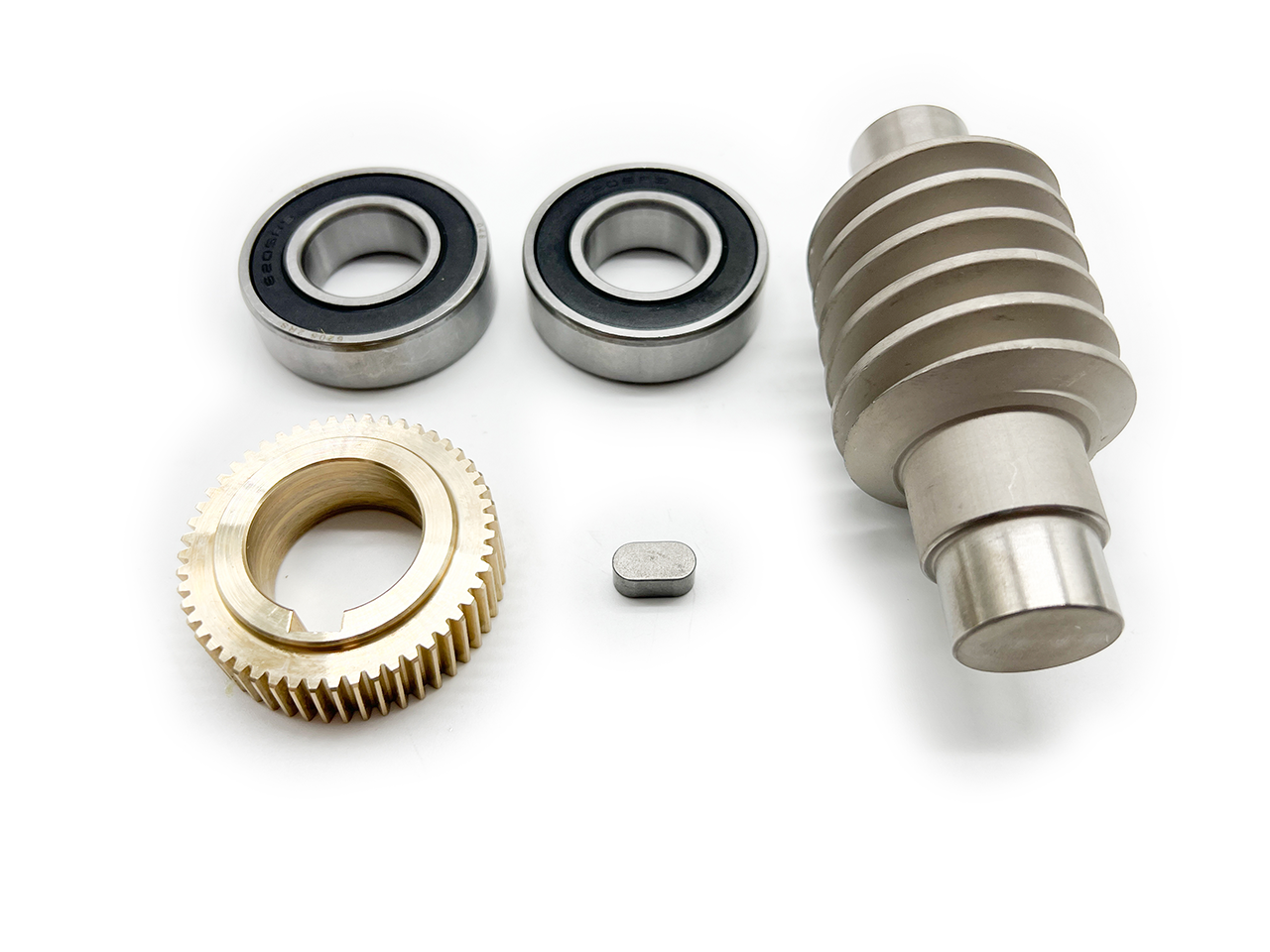

Spare INT24 reduction group assembly

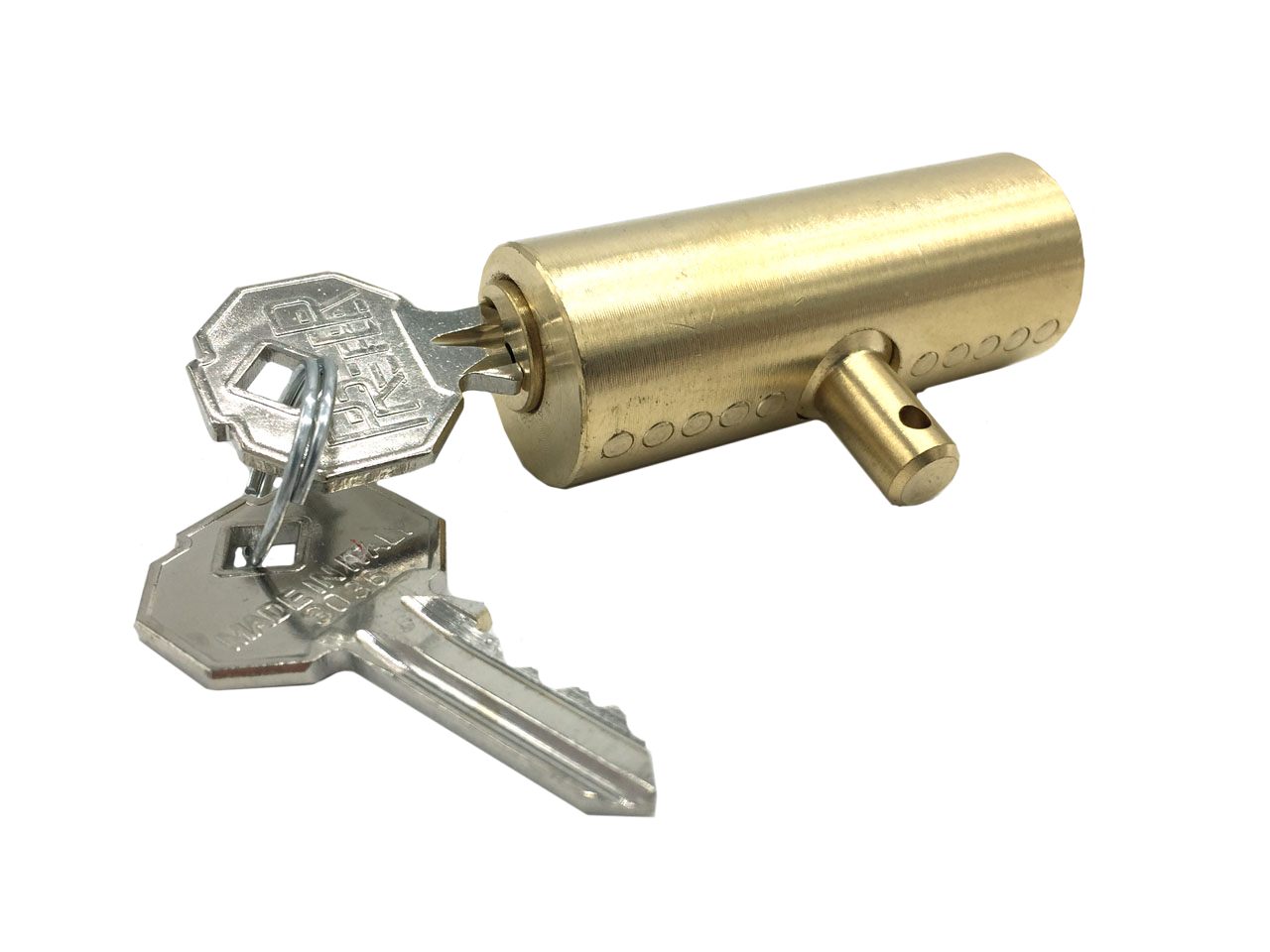

Double lock with spring pivot (same key number)
Support post h. 100 cm with integrated LED light (10W LED)
Support post h. 100 cm with integrated LED light (10W LED) and accessory housing

plus

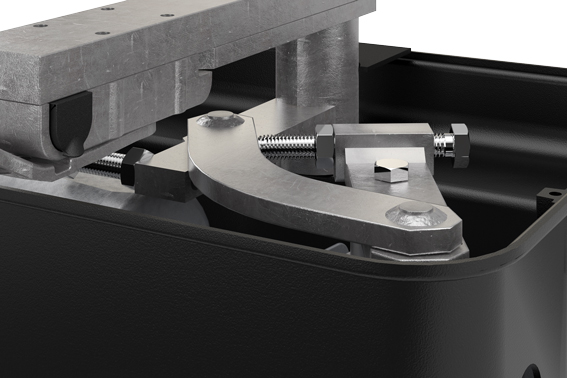

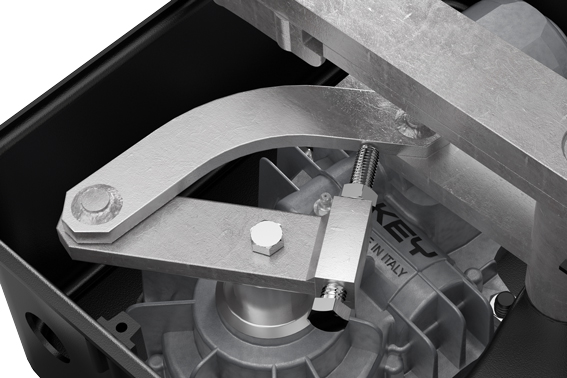

High precision mechanical stops

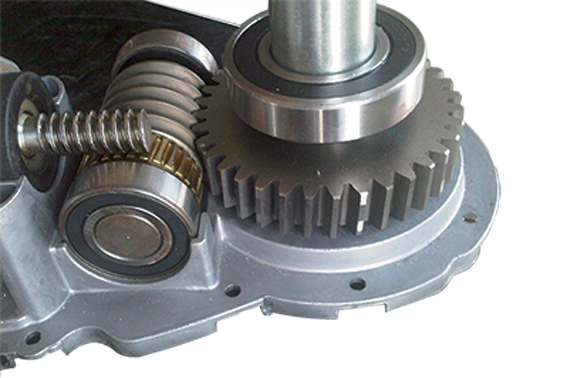

Bronze and tempered steel internal gears for maximum reliability

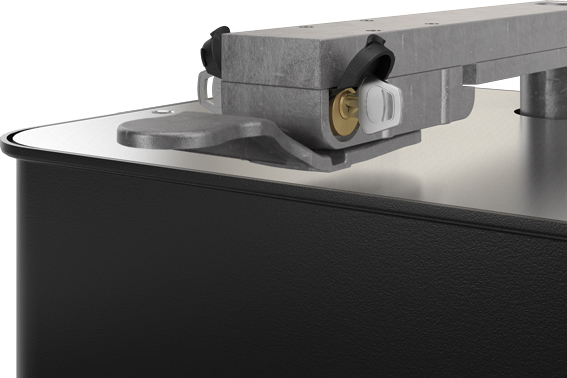

Internal and external unlock with special metal key
Easy maintenance thanks to the double greasers both on housing and gear motor

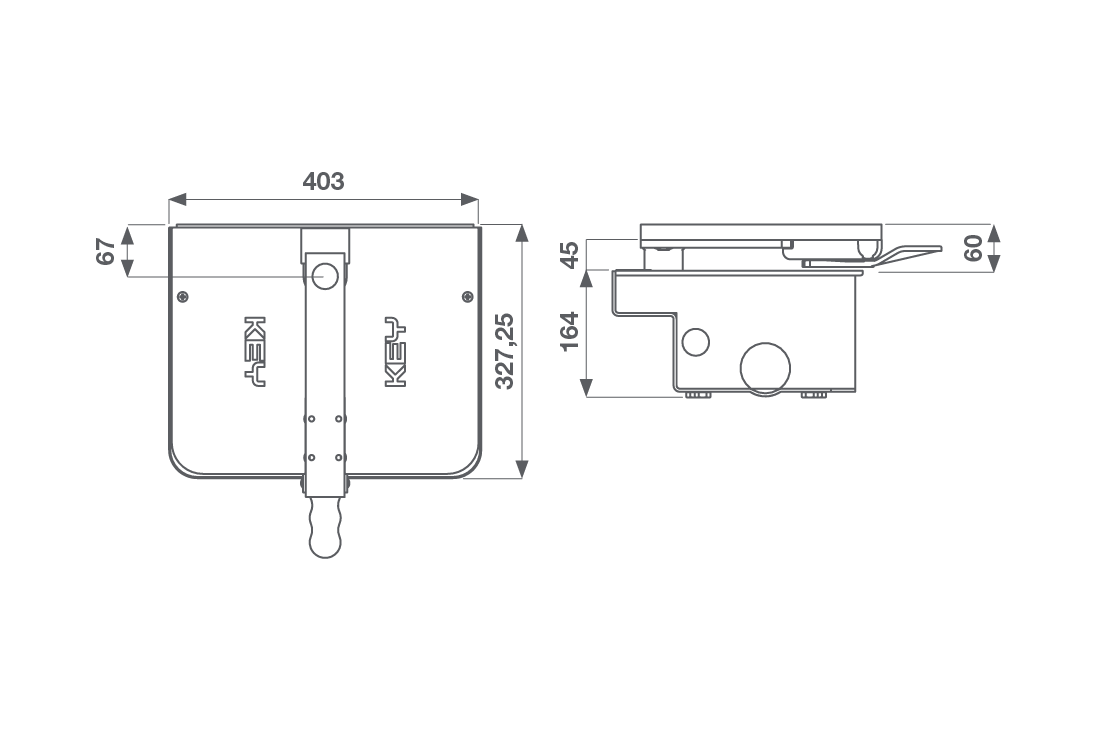

Dimensions

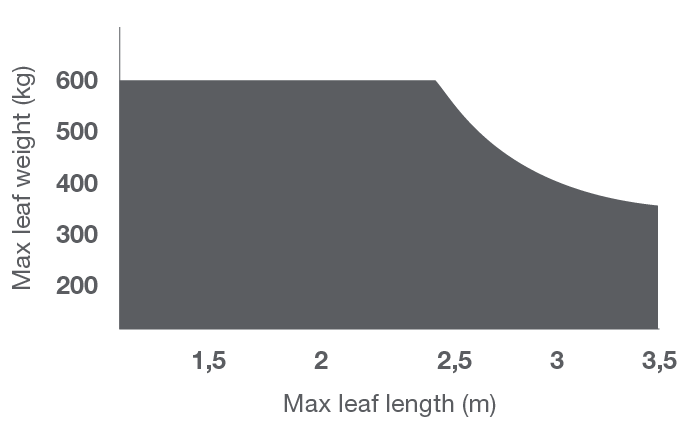

Usage Limits

Technical Features

90° Opening time s 18-25
Torque Nm
Duty cycle percentage % 80
Control unit 14AB2
Voltage Vdc 24
Nominal current A 5
Nominal power W 120
Appliance isolation class III
Degree of protection IP 67
Dimensions (W – D – H) mm 412 – 160 – 346
Packaging dimensions (L – D – H) mm 190 – 350 – 155
Packaging volume m3 0,01031
Item kg 10.1
Min operating temperature °C -20
Max operating temperature °C +55
Max leaf weight kg 600
Max leaf length m 3.5
