Description

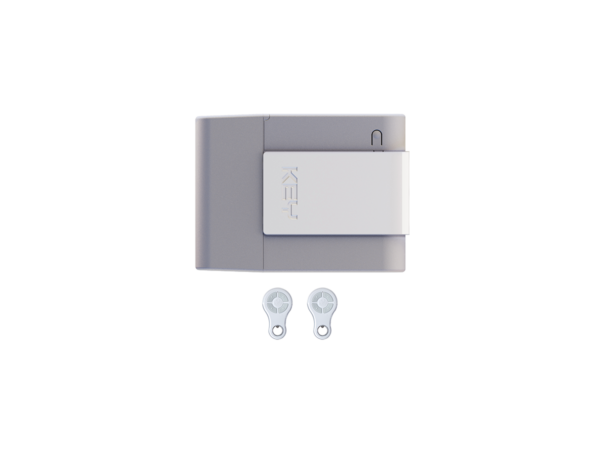

Kit for sectional doors, 24 Vdc, 1200 N strength. Built-in receiver. Included: 2x SUB44WR
900HA12SS
Kit for sectional doors, 24 Vdc, 1200 N strength. Built-in receiver. Included: 2x SUB44WR
| Product code | HA12SS |
| Speed | 15 cm/s |
| Force | 1200 N |
| Nominal power | 100 W |
| Max leaf weight | 200 kg |
resource
Accessories
plus

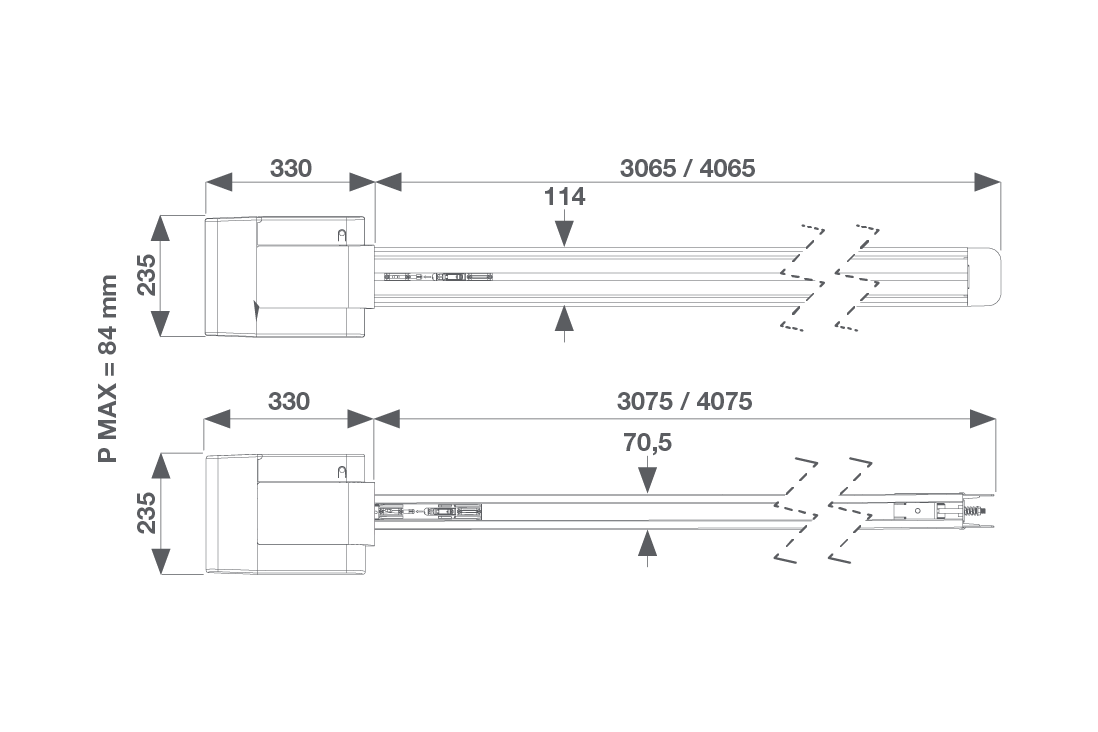

Dimensions
Technical Features
| Speed | cm/s | 15 |
| Force | N | 1200 |
| Cycles/hour | 20 | |
| Voltage | Vac | 230 |
| AC Voltage frequency | Hz | 50 |
| Nominal power | W | 100 |
| Appliance isolation class | II |
| Degree of protection | IP | 20 |
| Dimensions (W – D – H) | mm | 235 – 330 – 84 |
| Packaging dimensions (L – D – H) | mm | 143 – 400 – 300 |
| Packaging volume | m3 | 0,01716 |
| Item | kg | 7,1 |
| Min operating temperature | °C | -10 |
| Max operating temperature | °C | +45 |
| Power supply fuse | 1AT 250V | |
| Max leaf weight | kg | 200 |
