900ALT624K

Barriers

900ALT624K

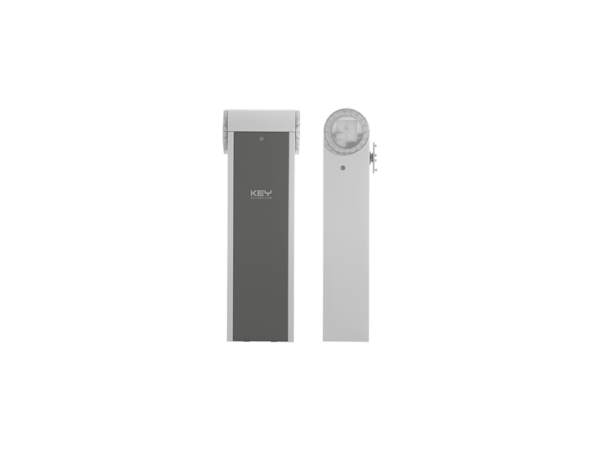

Barrier body, 24 Vdc, CT10224 control unit, encoder and double built-in led flashing light. For 6m to 8m bar
Product code ALT624K
90° Opening time 6-12 s
Control unit CT10224
Degree of protection IP 54
Max length 8 m

Description

Barrier body, 24 Vdc, CT10224 control unit, encoder and double built-in led flashing light. For 6m to 8m bar

Reviews

There are no reviews yet.

Be the first to review “900ALT624K”

Accessories

Reflective adhesive stripes kit
Fixed support for bar RAL7047
Led light kit for 5 and 6 m bar
Fence kit, length 1.7 m
Mobile support for bar RAL9010
3+3 m aluminium bar Ø 90 mm kit
4.2+4.2 m aluminium bar Ø 90 mm kit
Shock-proof rubber profile, 16 m and plug set (transparent)
Shock-proof rubber profile, 12 m and plug set (transparent)
Led light kit for 8 m bar
Control unit for one sliding gate motor, overhead door or barrier, 24 Vdc, with electronic clutch and slowdown functions. Built-in receiver
4-channel transmitter, pink colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, red colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, blue colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, magenta colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, orange colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, green colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, with on-board receiver, waterproof
4-channel transmitter, white colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, yellow colour, XR rolling code 433 MHz, waterproof
4-channel transmitter, black colour, XR rolling code 433 MHz, with on-board receiver, waterproof
Kit with 2x 4-channel 433 MHz transmitters, rolling code, inverted colours charcoal grey/light grey
Kit with 2x 4-channel 433 MHz transmitters with built-in receiver, rolling code, inverted colours charcoal grey/light grey
1-channel touch transmitter, rolling code 433Mhz
2-channel touch transmitter, rolling code 433Mhz
Pair of photocells for external use for small pillars
Pair of photocells for external use and flush mounting
Pair of photocells for external use adjustable through 180°, for small pillars, battery powered
Pair of photocells for external use and flush mounting
The RP25K reflective photo-electric switch has been specially developed for gate automation installations and offers the optimum solution for safety application. Comes with reflector, mounting brackets for the RP 25, mounting brackets for the reflector, insulation for the reflector, including a cable gland M12 and fastening material for the mounting brackets.
Touch keyboard via radio (Rolling Code)
Touch keyboard via PowerBUS
Radio controlled digital key pad to be ordered together with all rolling code receivers with batteries included. Digital key pad with new design interface, back-lighting and 2, channels transmitter.
Solar power kit for the automation of road barriers and gates
Kit for 24 V battery fixing
Kit of 1.3 Ah lead battery and battery charger
Interface for master/slave function
Voltage regulator for LED lights 24 Vdc, max 30W
Support post h. 100 cm
Support post h. 50 cm
Spare control board box for ALT3/ALT4/ALT6
Spare hex "L" key S=5 ISO2936 (5pcs)
Spare steel cover assembly for ALT3/ALT6
Spare ALT6K/ALT3KF LED cover
Spare ALT6K/ALT3KF door
Spare universal 121 lock (2 PCS)
Spare MEWA/BLINDO/ALT 24VDC motor assembly
Spare ALT/MEWA unlock lock (2pcs, random keys)
Spare ALT/MEWA unlock lock (2pcs, #9233 keys)
Spare LED board for ALTK
Spare bearings for ALT3/AL6 with screws
Spare M10 spring tensioner with pre-cut M10 rods (2pcs)
Spare main shaft group for 6M barrier
Spare spring for ALT4/ALT6 (2pcs)
Spare rocking lever for ALT6
Spare ALT6 boom bracket and screws
Spare ALT6 boom bracket and screws
Spare ALT6 motor first lever
Spare spring for ASTL8
Spare ALT6 boom support bracket with screws

plus

Double Led flashing light
Metallic gear + shock resistant motor (ALT624K)
CT10224 control unit with integrated display
New bar of 5 m for ALT4K

Dimensions

Technical Features

90° Opening time s 6-12
Torque Nm 305
Duty cycle percentage % 80
Control unit CT10224
Voltage Vac 230
AC Voltage frequency Hz 50/60
Nominal current A 1.3
Peak power W 300
Appliance isolation class I
Degree of protection IP 54
Dimensions (W – D – H) mm 400 – 280 – 1188
Packaging dimensions (L – D – H) mm 465 – 335 – 1235
Packaging volume m3 0.19238
Item kg 75.8
Min operating temperature °C -20
Max operating temperature °C +55
Max leaf length m 8
