HOW TO WIRE THE GARDEN LIGHTS

To start, plan carefully the cable routing for each area of your garden.

As the power supply is in extra-low voltage 24Vdc, expensive underground conduits could be avoided.

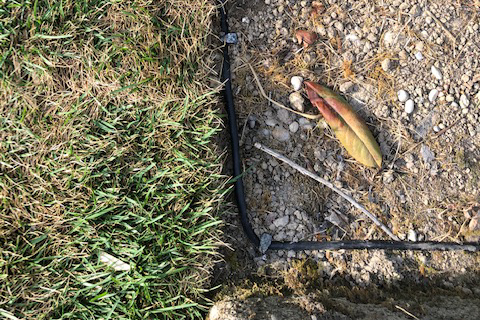

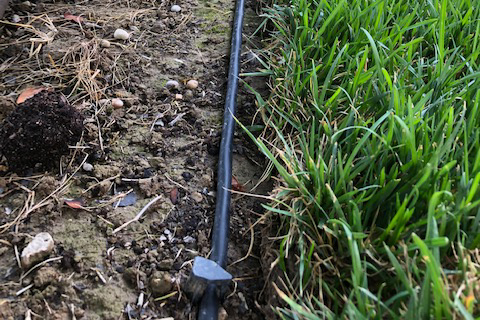

To simplify the installation you can lay the cable on the soil, using our special cable CAB50, suitable for outdoor use.

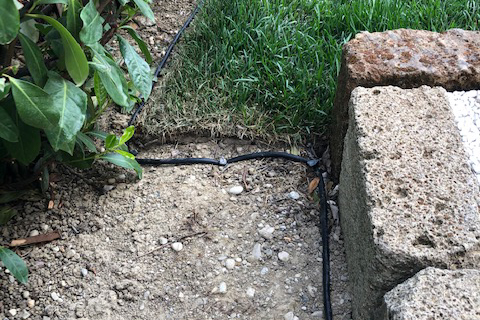

Over time the vegetation will make the cable invisible.

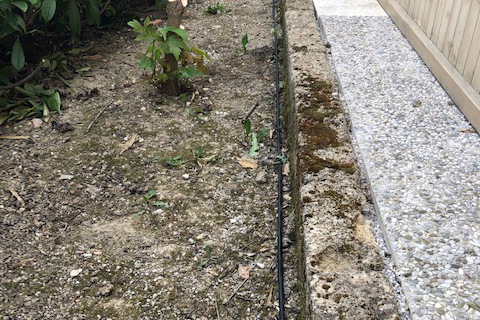

Fix the cable on the soil with our accessory STI7.

WIRING LIGHTS WITH OUR 3-WAY CONNECTOR CON3

download (4)

Don't forget to use our cable, suitable for outdoor usage, or a similar one. Choose the cable size based on its total lenght (see BOXLED power unit instrution)

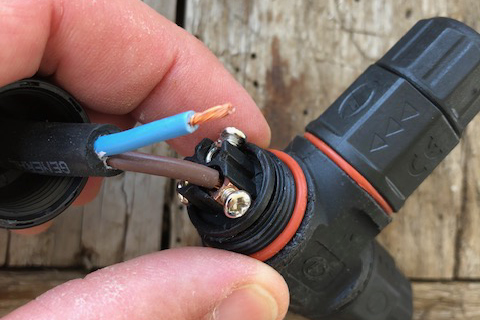

To begin, strip the cable, cutting the sheat for about 15 mm and strip the cable for about 5 mm:

download (5)

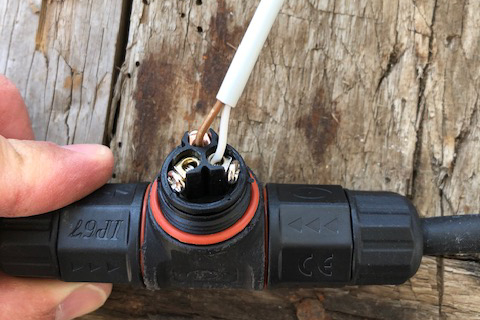

Note the color of the cable for each connection, to avoid polarity mistakes for the lights that will be wired after

download (6)

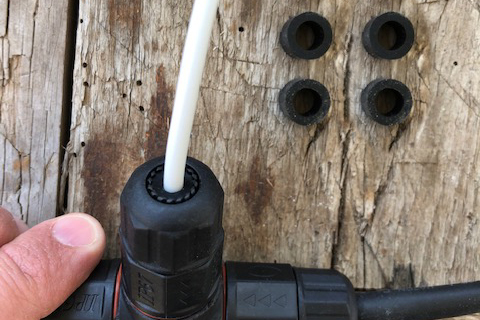

Proceed in this way, making sure that the cable gland will perfectly tighten the cable, to avoid water and humidiy to enter inside the connector

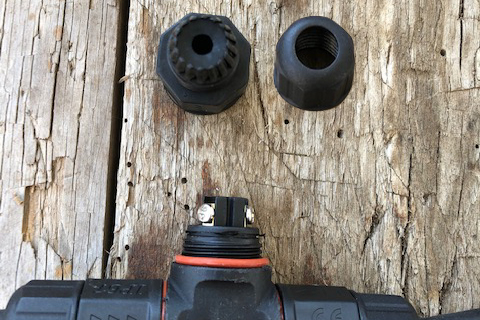

If necessary, use the proper rubber sheat supplied to reduce the size of the gland

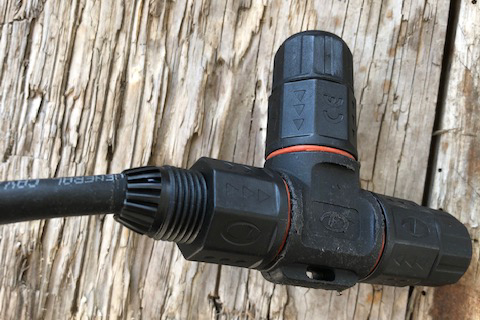

With the connector CON2 you can extend the line if the cable is not long enough.
